6 axis load cell six axis force torque sensor transducer 30KN 60KN 100KN 1000Nm 3000Nm 5000Nm
Model:YGX200 6 axis load cell
Features & Applications:
1) Made of high-strength and high-quality 17-4PH stainless steel, with high yield strength and overload capacity;
2) The international high level strain gauge chip is adopted, which can achieve high resolution, high response frequency and high test precision points;
3) 100% independent structural design, carefully tested before delivery, and extremely high coupling accuracy;
4) Multiple communication interface protocols can be selected, and debugging software or testing software can be provided;
5) Bending resistant high flexible cable;
6) Applicable to machine tool cutting, drilling and milling cutting force testing, rehabilitation medical equipment, aircraft lift testing, robot force control grinding, assembly, drag teaching and various scientific research;
Capacity: Fx/Fy/Fz:30KN/60KN/100KN Tx/Ty/Tz:1000Nm /3000Nm/5000Nm (Custom-made is available)

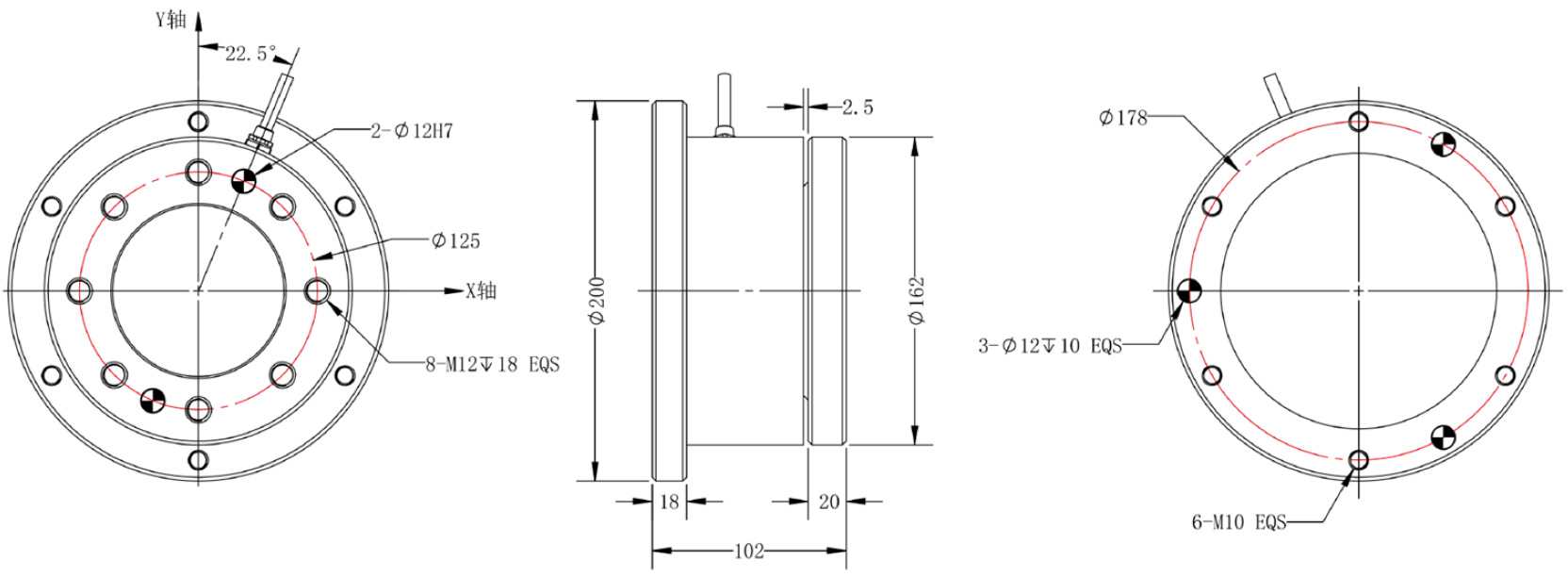

Dimensions(mm)
Specifications:
|
Model
|
YGX200-30KN
|
YGX200-60KN
|
YGX200-100KN
|
|
Capacity
|
Fx/Fy/Fz
|
30KN/30KN/30KN
|
60KN/60KN/60KN
|
100KN/100KN/100KN
|
|
Tx/Ty/Tz
|
1000Nm
|
3000Nm
|
5000Nm
|
|
Mechanical characteristic
|
|
Weight
|
About 10kg
|
|
Material
|
Stainless steel 17-4PH
|
|
Size
|
Φ200mm×102m
|
|
Protection class
|
IP65
|
|
Overload
|
300%FS
|
|
Rigidity
(Calculation)
|
Fx
|
1.6x107 N/m
|
|
Fy
|
1.6x107 N/m
|
|
Fz
|
1.3x107 N/m
|
|
Mx
|
6059.99Nm/rad
|
|
My
|
6059.99Nm/rad
|
|
Mz
|
10056.99Nm/rad
|
|
Electrical characteristics
|
|
Input/output impedance
|
350Ω
|
|
Communication interface
|
Mv matrix
|
|
Working voltage
|
5-15V DC
|
|
Cable length
|
5m
|
|
Accuracy class
|
|
Resolution ratio
|
Better than 0.1% FS
|
|
Nonlinear
|
Better than 0.2% FS
|
|
Accuracy
|
Better than 0.3% FS
|
|
Repeatability
|
Better than 0.2% FS
|
|
Coupling accuracy
|
Better than 1.5% FS
|
|
Hysteresis
|
Better than 0.3% FS
|
|
Temperature characteristics
|
|
Temperature zero drift
|
0.2%FS/10℃
|
|
Zero drift
|
0.1%FS/30min
|
|
Storage temperature
|
-25°C～70°C
|
|
Operating environment
|
0°C～40°C，20～80% RH
|
|
Extension interface
|
0±10v, /Ethercat,/Modbus-TCP,/Ethernet,/Canopen,/Modbus-RTU
|
