Multi-axis force torque transducer 6 axis load cell 1KN 5KN 15KN 200Nm 500Nm 1200Nm
Model:YGX130 6 axis load cell
Features & Applications:
1) Made of high-strength and high-quality 17-4PH stainless steel, with high yield strength and overload capacity;
2) The international high level strain gauge chip is adopted, which can achieve high resolution, high response frequency and high test precision points;
3) 100% independent structural design, carefully tested before delivery, and extremely high coupling accuracy;
4) Multiple communication interface protocols can be selected, and debugging software or testing software can be provided;
5) Bending resistant high flexible cable;
6) Applicable to aerospace, robotics, automotive, and medical research (orthopedics and biomechanics).
7) Sensors come in various capacity ranges and sizes, and can be custom-designed to suit different measurement ranges according to your specific needs.
Capacity: Fx/Fy/Fz:1KN/5KN/15KN Tx/Ty/Tz:200Nm /500Nm/1200Nm (Custom-made is available)
Specifications:
|
Model
|
YGX130-1000N
|
YGX130-5000N
|
YGX130-15000N
|
|
Capacity
|
Fx/Fy/Fz
|
1KN /1KN /1KN
|
5KN/5KN/5KN
|
15KN/15KN/15KN
|
|
Mx/My/Mz
|
200Nm
|
500Nm
|
1200Nm
|
|
Rated outpur
|
±0.4mV/V
|
|
Zero output
|
＜2
|
|
Nonlinear
|
±0.1%FS
|
|
Hysteresis
|
±0.1%FS
|
|
Repeatability
|
±0.2%FS
|
|
Creep
|
±0.1%（20 Minutes）
|
|
Temperature effect on zero
|
±0.01%FS
|
|
Temperature effect on output
|
±0.05%FS
|
|
Temperature compensation range
|
-10~+70℃ ; +14~+158℉
|
|
Operation temperature range
|
-10~+80℃ ; +14~+185℉
|
|
Materials
|
1KN 5KN:Aluminum alloy;15KN: SS 17-4PH;
Shell: Black anodized aluminum
|
|

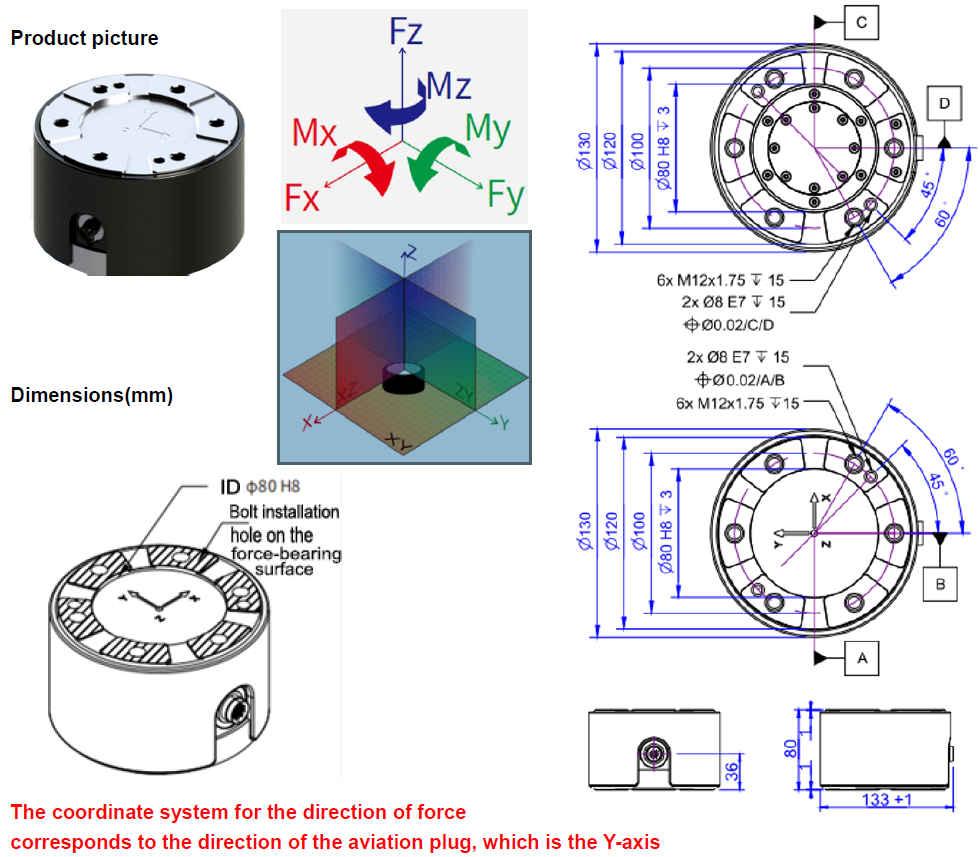

Sizes
|
Φ130mm×H80mm
|
|
Protection class
|
IP65
|
|
Safe overload
|
150%FS
|
|
Maximum overload
|
300%FS
|
|
Crosstalk
|
±1%
|
|
Input impedance
|
350Ω±10Ω
|
|
Output impedance
|
350Ω±10Ω
|
|
Recommended excitation
|
5V DC
|
|
Cable length
|
5m
|
