Six-dimensional load cells Multi-axis force torque sensor transducer 15N 30N 50N 0.5Nm 1Nm 3Nm
Model:YGX25 6 axis load cell
Features & Applications:
1) Made of high-strength, high-quality aluminum alloy or 17-4PH stainless steel, it features yield strength and high overload capacity;
2)Utilizing international high-standard strain gauge chips, it can achieve high resolution, high response frequency, and high test accuracy points;
3) 100% independent structural design, carefully tested before leaving the factory, with extremely high coupling accuracy;
4) Multiple communication interface protocols are available, covering basically the mainstream collaborative robot interfaces both domestically and internationally;
5) Provide debugging software or testing software;
6) Highly flexible cable with good bending resistance;
7) Applicable to rehabilitation medical devices, biomimetic experiments, aircraft lift testing, robotic force control for grinding, assembly, drag demonstration, and various scientific research;
Capacity: Fx/Fy/Fz:15N/30N/50N Mx/My/Mz:0.5Nm/1Nm/3Nm (Custom-made is available)

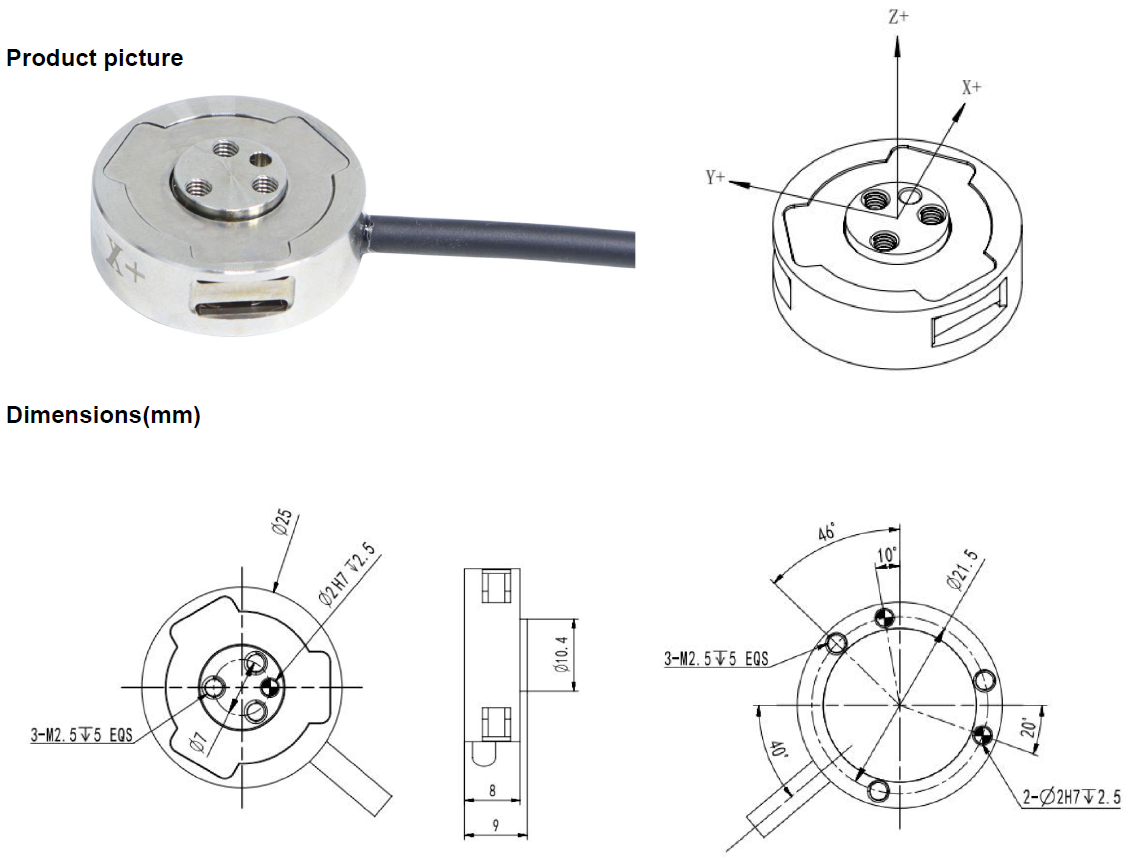

Dimensions(mm)
Specifications:
|
Model
|
YGX25-15N
|
YGX25-30N
|
YGX25-50N
|
|
Capacity
|
Fx/Fy/Fz
|
15N/15N/15N
|
30N/30N/30N
|
50N/50N/50N
|
|
Mx/My/Mz
|
0.5Nm
|
1Nm
|
3Nm
|
|
Mechanical characteristic
|
|
Weight
|
around 40g
|
|
Material
|
Aluminum /17-4PH
|
|
Size
|
Φ25mm×9mm
|
|
Protection class
|
IP65
|
|
Overload
|
300%FS
|
|
Electrical characteristics
|
|
Input/output impedance
|
350Ω
|
|
Communication interface
|
Mv matrix
|
|
Working voltage
|
5-15V DC
|
|
Cable length
|
5m
|
|
Accuracy class
|
|
Resolution ratio
|
Better than 0.1% FS
|
|
Nonlinear
|
Better than 0.2% FS
|
|
Accuracy
|
Better than 0.3% FS
|
|
Repeatability
|
Better than 0.2% FS
|
|
Coupling accuracy
|
Better than 1.5% FS
|
|
Hysteresis accuracy
|
Better than 0.3% FS
|
|
Temperature characteristics
|
|
Temperature zero drift
|
0.2%FS/10℃
|
|
Zero drift
|
0.1%FS/30min
|
|
Storage temperature
|
-25°C～70°C
|
|
Operating environment
|
0°C～40°C，20～80% RH
|
|
Extension Interface
|
0±10v, /Ethercat,/Modbus-TCP,/Ethernet,/Canopen,/Modbus-RTU
|
