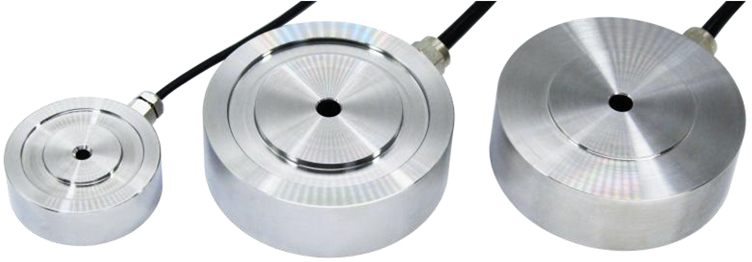

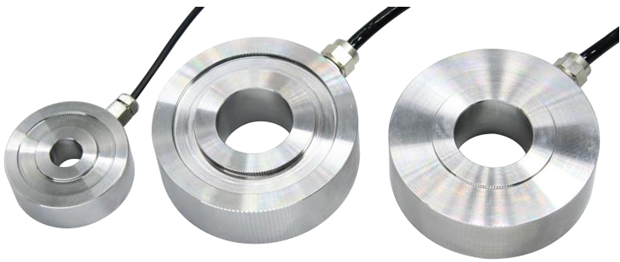

Thru hole load cell Donut force sensor transducer loadcell 0.5KN 1KN 2KN 5KN 10KN 20KN 50KN 100KN 200KN
Model: YGX-HX004
Features and Applications
1.High stability

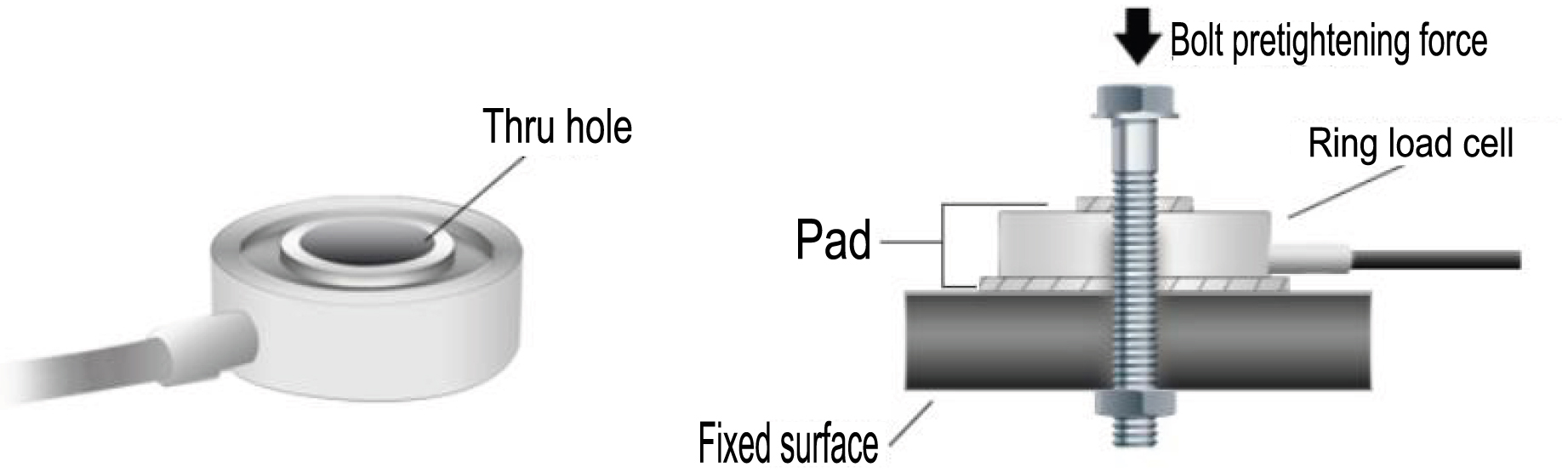

2.Bolt pretightening force sensor,
3.Customizable inner hole size
4.Non-standard customization
5.High quality stainless steel material
6.Widely used in bolt monitoring, washer bolt of various equipment
7.Pretightening force sensor, made of high-quality stainless steel, with inner hole through hole or threaded hole can be customized, for bolt tightening force inspection and some force-measuring places with limited installation space. With and automation equipment and testing.
Capacity: 0.5KN, 1KN, 2KN, 5KN, 10KN, 20KN,50KN,100KN,200KN

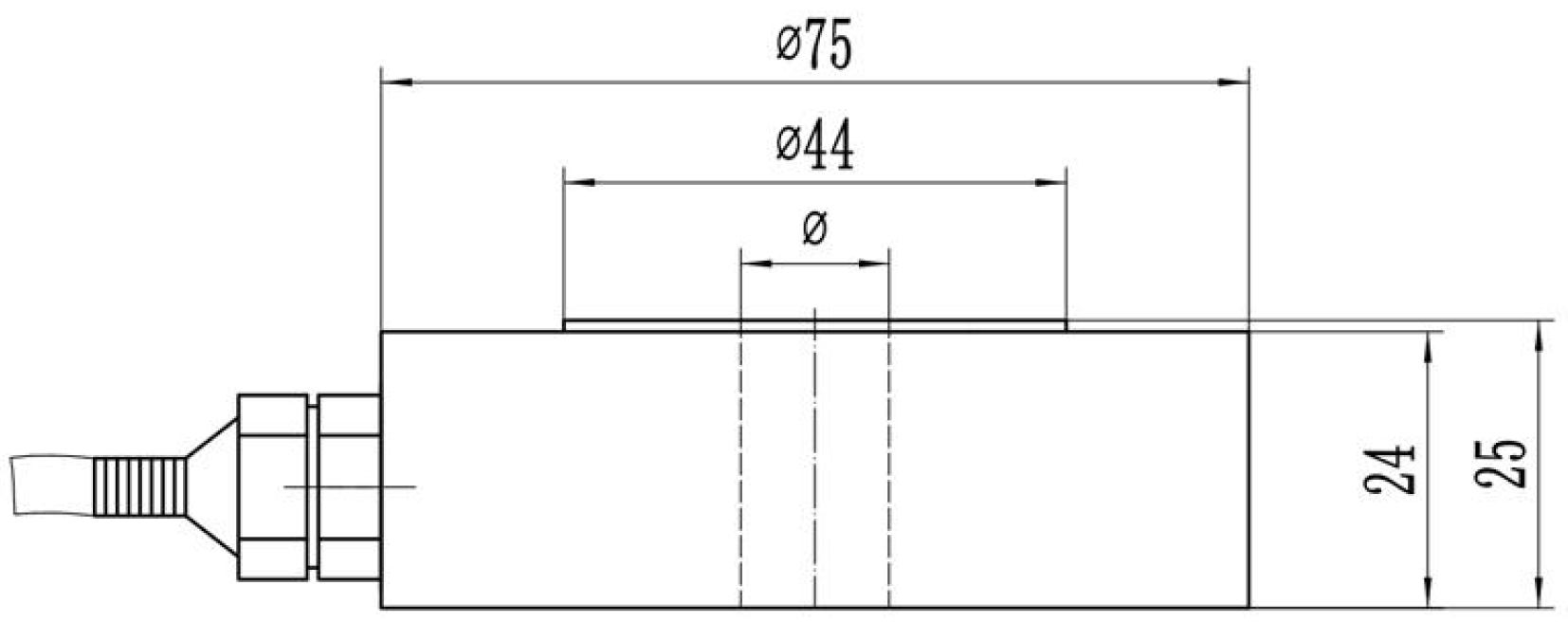

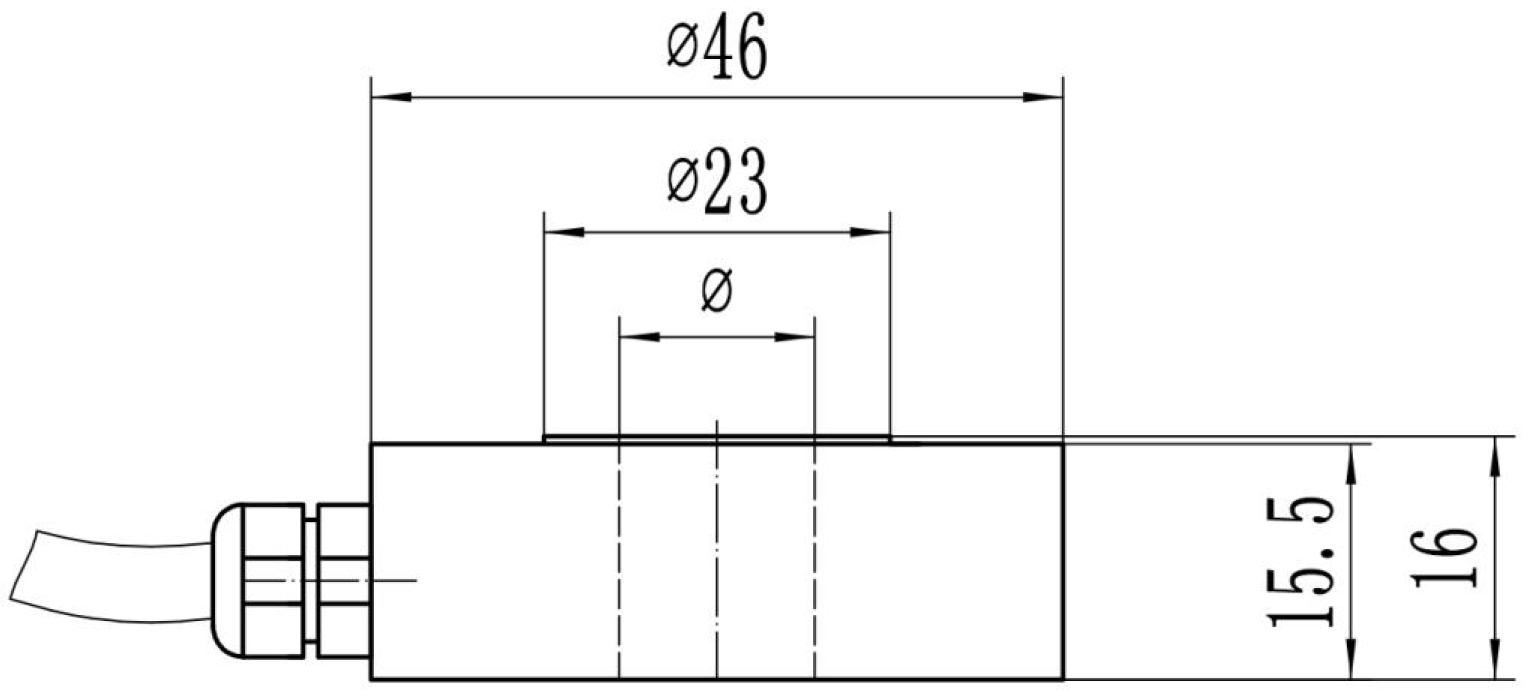

Dimensions(mm)
|
Capacity
|
0.5 KN
|
1 KN
|
2 KN
|
5 KN
|
10 KN
|
20 KN
|
|
Φ（mm）
|
4-16(Custom-made is available)
|
|
Capacity
|
10 KN
|
20 KN
|
50 KN
|
100 KN
|
200 KN
|
|
Φ（mm）
|
7-30(Custom-made is available)
|
Specification:
|
Rated output
|
1.0±10%mV/V
|
|
Non-linearity
|
0.3%F·S
|
|
Hysteresis
|
0.1%F·S
|
|
Repeatability
|
0.1%F·S
|
|
Creep(30min)
|
0.1%F·S
|
|
Zero balance
|
±2%F·S
|
|
Temperature effect on zero
|
0.1%F·S/10℃
|
|
Temperature effect on output
|
0.1%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Response frequency
|
1KHz
|
|
Input impedance
|
700Ω
|
|
Output impedance
|
700Ω
|
|
Safe overload
|
120%F·S
|
|
Ultimate Load Limit
|
150%
|
|
Insulation
|
≥5000MΩ(100VDC)
|
|
Recommended excitation
|
5V-15V
|
|
Material
|
Stainless steel
|
|
Cable
|
Φ5x2m
|
|
Cable ultimate tension
|
98N
|
|
Protection Class
|
IP65
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
1) High temperature sensor can be provided, and the maximum working temperature is 150 ℃.
2) We can provide high impedance sensor with output impedance of 1000 Ω.
Loading
