Ring load cell hollow force sensor transducer loadcell 50KG 200KG 300KG 500KG 1000KG 3000KG 5000KG
Model: YGX-HX003
Features and Applications
Mainly applied in tension and compression testing instruments and automatic equipments fields, such as insertion force test instrument, riveting machine, welding machine, hot & cold lamination machine, feeling tester for keyboard button, and etc.
Capacity: 50KG, 200KG, 300KG, 500KG, 1000KG, 3000KG, 5000KG

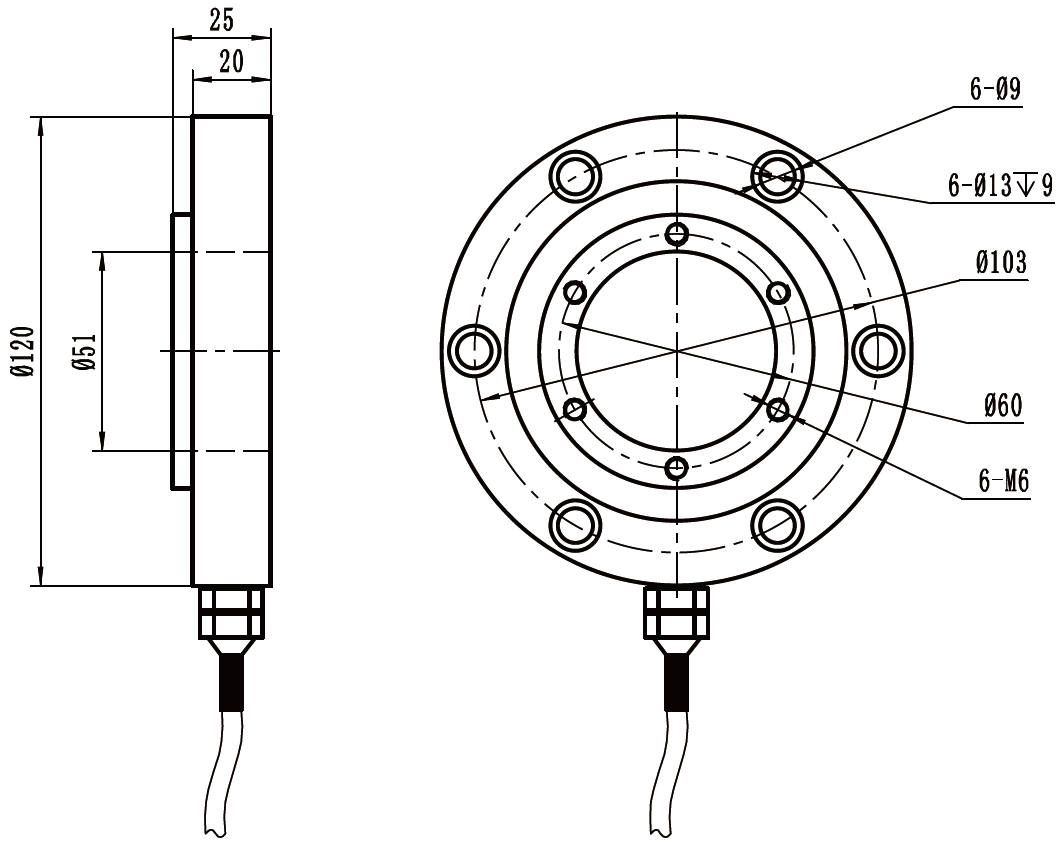

Dimensions(mm):
Specification:
|
Rated output
|
1.0±10%mV/V
|
|
Non-linearity
|
0.3%F·S
|
|
Hysteresis
|
0.3%F·S
|
|
Repeatability
|
0.3%F·S
|
|
Creep(30min)
|
0.3%F·S
|
|
Zero balance
|
2%F·S
|
|
Temperature effect on zero
|
0.3%F·S/10℃
|
|
Temperature effect on output
|
0.3%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
700Ω
|
|
Output impedance
|
700Ω
|
|
Safe overload
|
120%F·S
|
|
Ultimate Load Limit
|
200%
|
|
Insulation
|
≥5000MΩ(100VDC)
|
|
Recommended excitation
|
5V-15V
|
|
Material
|
Alloy steel
|
|
Cable
|
Φ5x3m
|
|
Protection Class
|
IP65
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
