0.5T 1T 5T 10T 15T 20T 30T 50T 100T Compression weigh module pancake load cell weighing module kit
Model: YGX-DL103S1 module
Features & Applications：
1. High quality alloy steel material
2. Max. capacity from 0.5t to 100t
3. Complies with OIML R60 regulations up to 3000d divisions
4. Hermetically sealed (IP68; IP69K)
5. Low profile and small deflection
6. Applications: Container and tank weighing; and Industrial batching control system
Option
Material: Stainless steel
Various cable lengths
Explosion-proof Ex versions
Capacity: 0.5T~100T

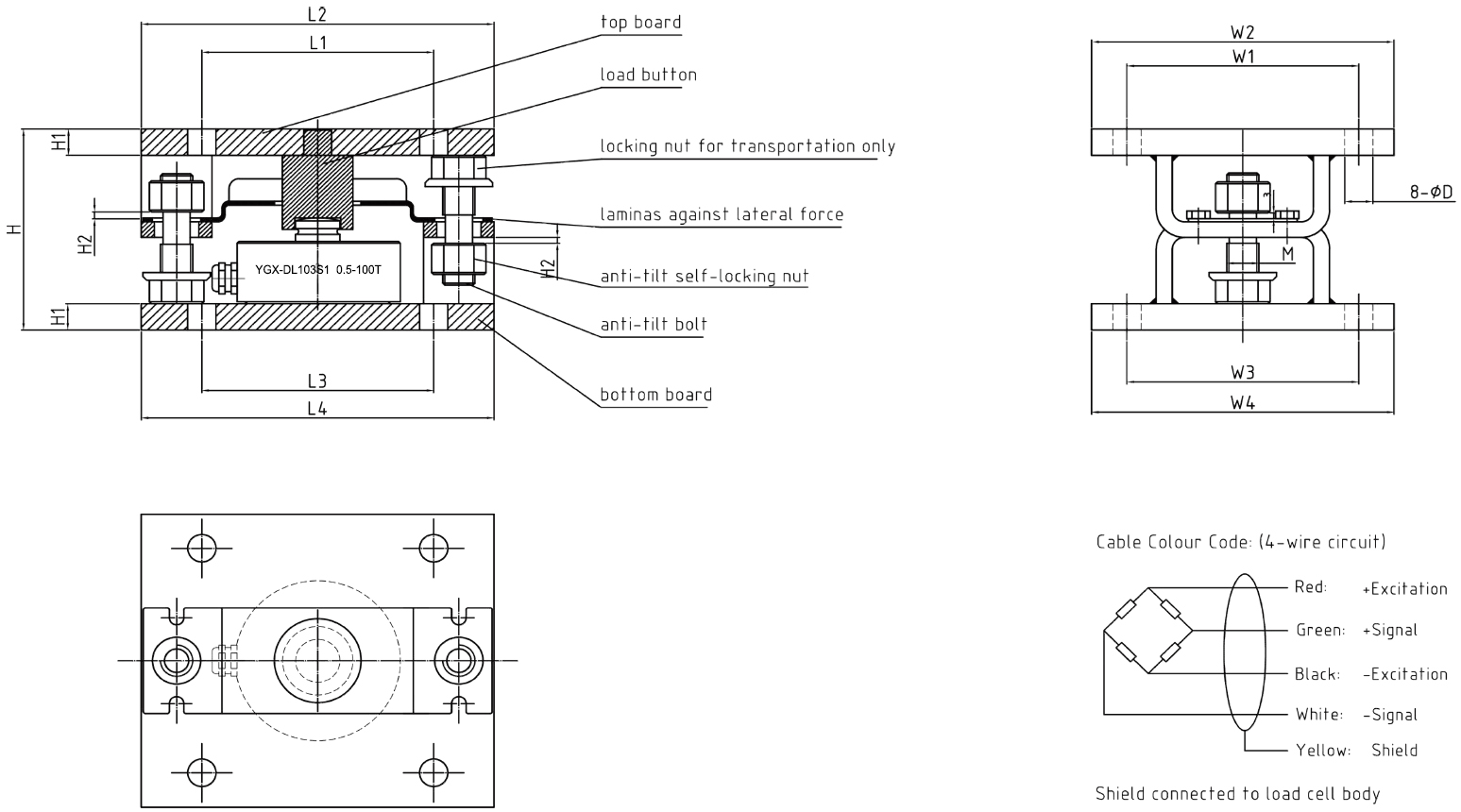

Dimensions(mm):
|
Size(mm)
Capacity
|
D
|
H
|
H1
|
H2
|
L1
|
L2
|
L3
|
L4
|
W1
|
W2
|
W3
|
W4
|
M
|
|
0.5-10T
|
14.0
|
103.0
|
13.5
|
3.0
|
115.0
|
175.0
|
115.0
|
175.0
|
115.0
|
150.0
|
115.0
|
150.0
|
M16
|
|
15-30T
|
14.0
|
114.2
|
19.1
|
3.0
|
115.0
|
175.0
|
115.0
|
185.0
|
115.0
|
150.0
|
115.0
|
150.0
|
M16
|
|
50T
|
17.5
|
(140)
|
25.4
|
3.0
|
160.0
|
225.0
|
160.0
|
225.0
|
160.0
|
200.0
|
160.0
|
200.0
|
M20
|
|
100T
|
20.0
|
(170)
|
25.4
|
3.0
|
185.0
|
275.0
|
185.0
|
275.0
|
185.0
|
250.0
|
185.0
|
250.0
|
M24
|
Specifications
|
Module material
|
SS304 / Alloy steel nickel plated
|
|
Rated output
|
2.0±0.004mV/V
|
|
Rated capacity(Emax)
|
0.5T 1T 2.5T 5T 10T 15T 20T 30T 50T 100T
|
|
Accuracy class1)2)
|
C3 / 0.03%
|
|
Zero balance
|
±1%F·S of Emax
|
|
Repeatability error
|
＜±0.010% of AL ＜±0.020% of AL
|
|
Creep(30min)
|
＜±0.017% of AL ＜±0.020% of AL
|
|
Min. dead load output return(DR;) 30min.
|
＜±0.017% of AL ＜±0.020% of AL
|
|
Temperature effect on Min. dead load output
|
＜±0.0014% of Emax/ ℃ ＜±0.002% of Emax/ ℃
|
|
Temperature effect on Rated output2)
|
＜±0.0012% of AL/ ℃ ＜±0.002% of AL/ ℃
|
|
Temperature range Compensated
|
-10 to +40℃ (+14 to +104℉)
|
|
Temperature range Operating
|
-40 to +65℃ (-40 to +149℉)
|
|
Temperature range Safe storage
|
-40 to +80℃ (-40 to +176℉)
|
|
Excitation voltage Recommended
|
5V-15V AC/DC
|
|
Excitation voltage Maximum
|
20V AC/DC
|
|
Terminal resistance Excitation
|
766±5Ω
|
|
Terminal resistance Output
|
700±3Ω
|
|
Safe overload
|
150%F·S
|
|
Ultimate overload
|
300%F·S
|
|
Insulation resistance
|
＞5000MΩ(50V DC)
|
|
Breakdown voltage
|
＞500V AC
|
|
Seal type/IP rating
|
Hermetically welded / IP68 IP69K
|
|
Cable length
|
0.5-10t: 6m 15-100t:12m
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
Notes:
1) Error due to the combined effect of non-linearity and hysteresis
2) The sum of errors due to Temperature Effect on output comply with the requirements of OIML R60 and NIST HB44
3) AL=Applied Load
