100KG 500KG 1T 3T 5T 10T 20T 30T 50T 60T Pancake load cell weighing modules compression mounting kits
Model: YGX-DL102 module
Features & Applications：
1. Using high-precision single-cut beam sensor, high weighing accuracy.
2. Unique structure and can be easily installed on various tanks.
3. It can eliminate the weighing error caused by thermal expansion and contraction of the tank.
4. Support bolts to prevent equipment from overturning.
5. High-quality alloy steel, nickel-plated surface, stainless steel optional.
6. Installation is simple and fast.
7. Easy to replace, saving downtime and maintenance time.
8. It is widely used in batching and weighing fields, such as reaction kettle, batching tank, hopper, silo, tank, cement mixing station, chemical, pharmaceutical and food industry.
9. Custom-mad is available.
Capacity: 1T~60T
|

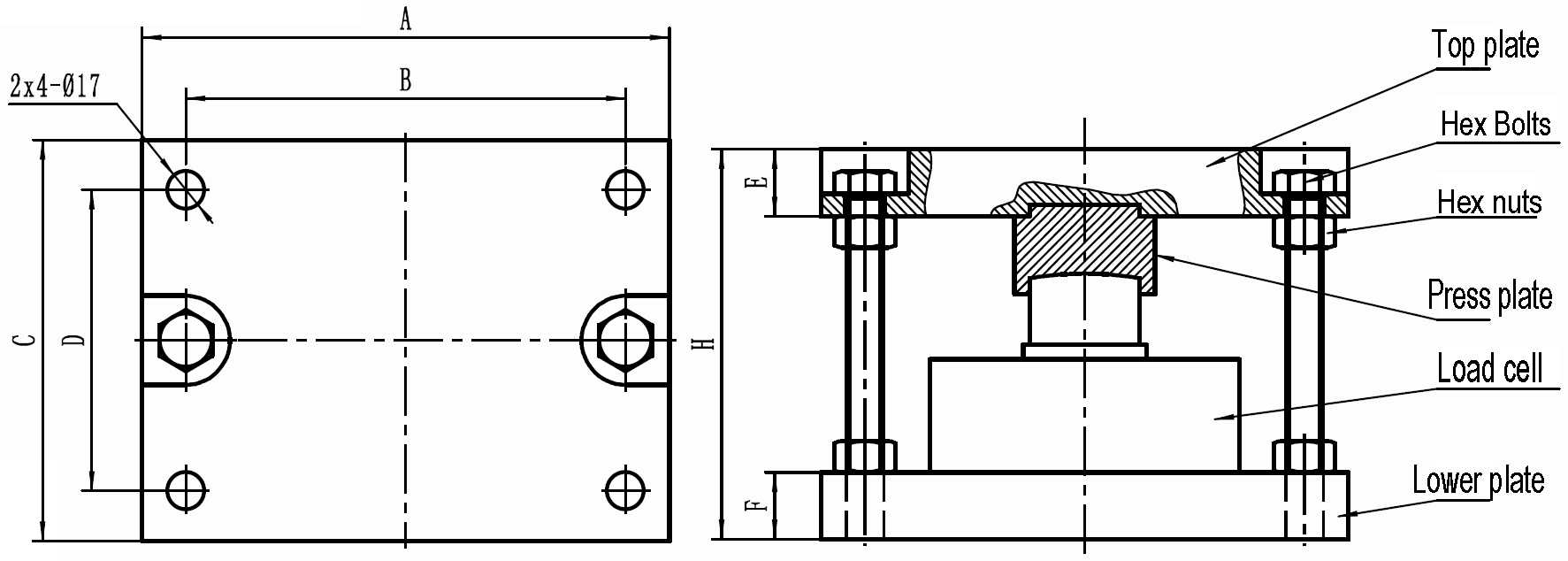

Size(mm)
Capacity
|
A
|
B
|
C
|
D
|
E
|
F
|
H
|
|
1-5T
|
200
|
170
|
150
|
120
|
24
|
19
|
90
|
|
10-20T
|
200
|
160
|
160
|
125
|
25
|
25
|
145
|
|
30T
|
240
|
200
|
180
|
135
|
30
|
30
|
175
|
|
40-60T
|
240
|
200
|
180
|
135
|
30
|
30
|
175
|
Specifications
|
Rated output
|
2.0±0.002mV/V
|
|
Non-linearity
|
0.05%F·S
|
|
Hysteresis
|
0.03%F·S
|
|
Repeatability
|
0.03%F·S
|
|
Creep(30min)
|
0.03%F·S
|
|
Zero balance
|
±2%F·S
|
|
Temperature effect on zero
|
0.05%F·S/10℃
|
|
Temperature effect on output
|
0.03%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Impedance
|
700Ω
|
|
Material
|
Alloy steel / Stainless steel
|
|
Safe overload
|
150%F·S
|
|
Ultmate overload
|
200%F·S
|
|
Insulation
|
≥5000MΩ(50VDC)
|
|
Recommended excitation
|
5V-15V
|
|
Cable
|
Φ5x5m
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal（pull is +,press is -）
|
1) High temperature sensor can be provided, and the maximum working temperature is 150 ℃.
2) We can provide high impedance sensor, the output impedance is 1000 Ω.
