100KG 300KG 500KG 1T 3T 5T 7.5T 8T 10T shear beam load cell weigh module kits weighing modules
Model: YGX-M003 Mounting module
Features and Applications
1. High stability
2. Available in a variety of installation methods
3. Non-standard customization
4. Anti-jamming signal stability
5. High quality alloy steel
6. Widely used in reaction kettle, batching tank, hopper, feed tank warehouses, tanks, cement mixing plants, chemicals, medicine and food Industry and other ingredients weighing fields.
Capacity: 0-10T
|
Capacity
|
D
|

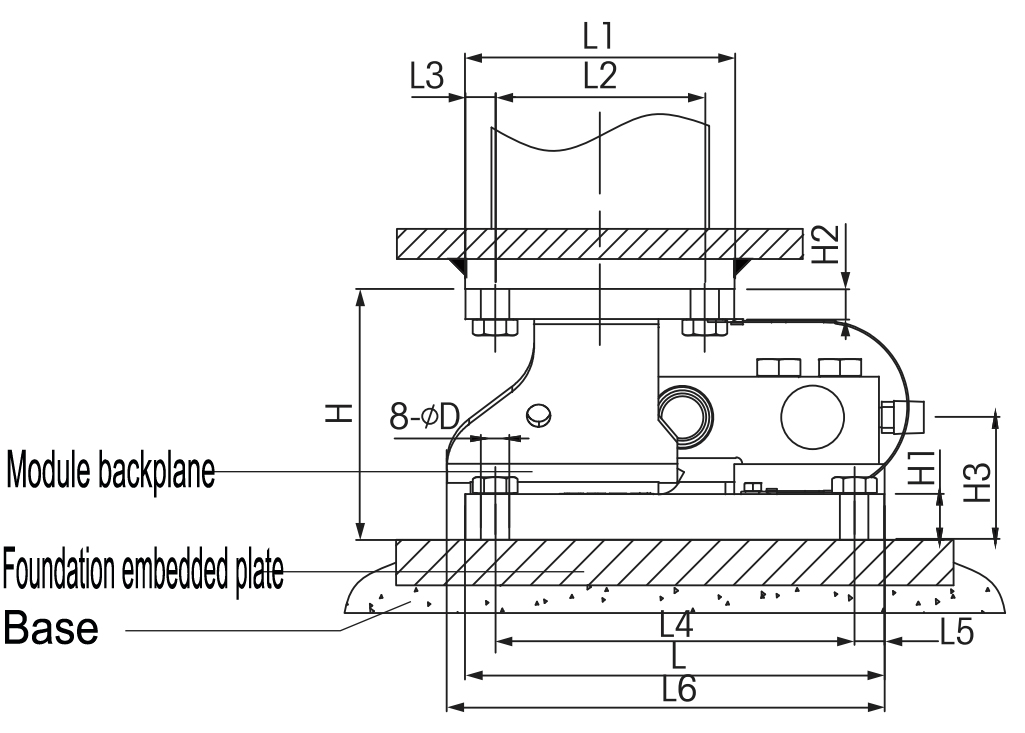

H
|
H1
|
H2
|
H3
|
H4
|
L
|
L1
|
L2
|
L3
|
L4
|
L5
|
L6
|

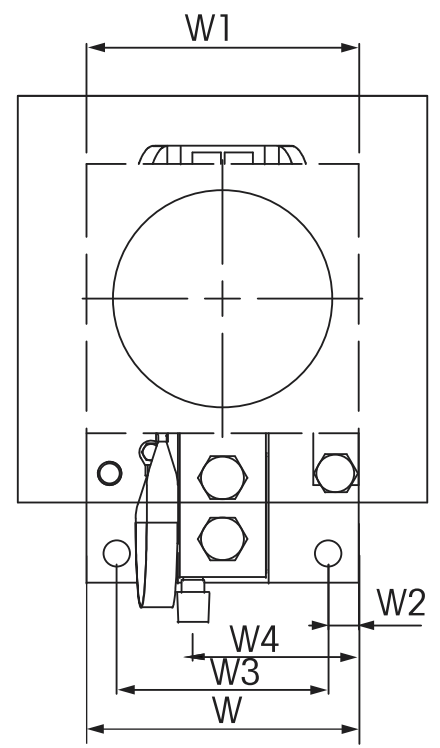

W
|
W1
|
W2
|
W3
|
W4
|
A
|
|
0-100kg
|
10
|
83
|
12.7
|
8
|
41.0
|
10
|
165
|
102
|
82
|
10
|
145
|
10
|
-
|
102
|
102
|
10
|
82
|
60.0
|
M8
|
|
300kg/500kg/1T
|
11.2
|
105.2
|
19.1
|
12.7
|
50.9
|
15
|
177.9
|
114.4
|
89.0
|
12.7
|
152.4
|
12.7
|
185.6
|
114.4
|
114.4
|
12.7
|
89.0
|
66.6
|
M10
|
|
3T
|
11.2
|
51.3
|
69.7
|
|
5T
|
17.5
|
136.6
|
25.4
|
19.1
|
70.3
|
20
|
235.0
|
152.4
|
101.6
|
25.4
|
184.2
|
25.4
|
-
|
152.4
|
152.4
|
25.4
|
101.6
|
91.7
|
M16
|
Specification:
|
Rated output
|
2.0±0.002mV/V
|
|
Non-linearity
|
±0.05%F·S
|
|
Hysteresis
|
±0.05%F·S
|
|
Repeatability
|
±0.03%F·S
|
|
Creep(30min)
|
±0.03%F·S
|
|
Zero balance
|
±2%F·S
|
|
Temperature effect on zero
|
±0.03%F·S/10℃
|
|
Temperature effect on output
|
±0.05%F·S/10℃
|
|
Response frequency
|
1KHz
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
700Ω1400Ω
|
|
Output impedance
|
700Ω1400Ω
|
|
Safe overload
|
150%F·S
|
|
Ultimate overload
|
200%F·S
|
|
Insulation
|
≥5000MΩ(100VDC)
|
|
Recommended excitation
|
5V-15V
|
|
Protection Class
|
IP67
|
|
Cable
|
Φ5x5m
|
|
Material
|
Alloy steel / Stainless steel
|
|
Cable ultimate tension
|
98N
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
1) High temperature sensor is available, the maximum working temperature is 150℃.
2) High-impedance sensors are available, with an output impedance of 1000Ω.
