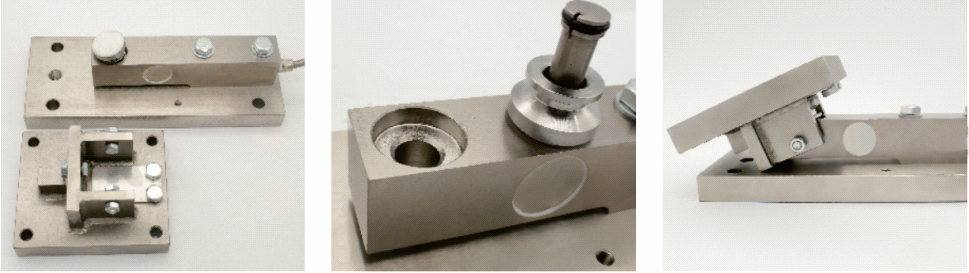

Model: YGX-D302 mounting module
Features and Applications
High stability
Multiple installation methods are available
Non standard customization available
Stable anti-interference signal
High quality alloy steel
Widely used in reaction kettles, batching tanks, hoppers and materials warehouse, tank, cement mixing station, chemical medicine and food Industry, etc.
Capacity: 0.5T-25T
Specification:
|
Rated output
|
2.0±0.002mV/V
|
|
Non-linearity
|
±0.03%F·S
|
|
Hysteresis
|
±0.03%F·S
|
|
Repeatability
|
±0.03%F·S
|
|
Creep(30min)
|
±0.03%F·S
|
|
Zero balance
|
±2%F·S
|
|
Temperature effect on zero
|
±0.02%F·S/10℃
|
|
Temperature effect on output
|
±0.02%F·S/10℃
|
|
Response frequency
|
1kHz
|
|
Material
|
42CrMoA/stainless steel
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
350±5Ω
|
|
Output impedance
|
350±5Ω
|
|
Safe overload
|
150%F·S
|
|
Ultimate Overload
|
200%F·S
|
|
Insulation
|
≥5000MΩ(100VDC)
|
|
Recommended excitation
|
5-15V
|
|
Protection Class
|
IP67
|
|
Cable
|
Φ5*2m
|
|
Cable ultimate tension
|
98N
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
1) High temperature sensor can be provided, and the maximum working temperature is 150 ℃.
2) High impedance sensor with output impedance of 1000 Ω can be provided.

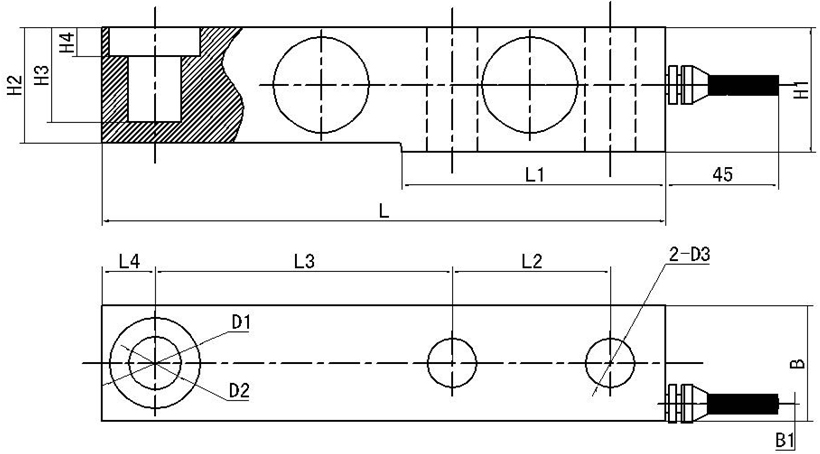

Dimensions(mm):
|
Capacity（T）
|
L
|
L1
|
L2
|
A
|
A1
|
B
|
B1
|
C
|
C1
|
H
|
H1
|
H2
|
T
|
P
|
G
|
D
|
|
0.3/0.5/1/2/3
|
286
|
32
|
226
|
150
|
124
|
112
|
102
|
112
|
80
|
106.9
|
28
|
23
|
96
|
M10
|
Φ13
|
1.6
|
|
5
|
317.5
|
32
|
257
|
178
|
146
|
152
|
120
|
152
|
102
|
146.2
|
38
|
30
|
99
|
M16
|
Φ17
|
1.6
|
|
10
|
360
|
32
|
295
|
184
|
152
|
154
|
122
|
154
|
106
|
215.7
|
45
|
45
|
105
|
M20
|
Φ21
|
3
|
|
15-25
|
400
|
25
|
350
|
220
|
170
|
220
|
170
|
220
|
170
|
255.7
|
55
|
55
|
115
|
M24
|
Φ26
|
3
|
