100KG 200KG 500KG 1T 2T 3T 5T 10T 15T Shear beam load cell weighing modules weigh module
Model: YGX-501Y mounting module
Features and Applications
1. High-precision single-shear beam sensor with high weighing accuracy.
2. Unique structure, easy to install on a variety of tanks.
3. It can eliminate the weighing error caused by thermal expansion and cold contraction..
4. Support bolts to prevent equipment from tipping over.
5. High-quality alloy steel, nickel-plated surface, stainless steel optional.
6. Easy to install, fast
7. Easy to replace, saving downtime maintenance time.
8. Suitable for batch weighing control of tanks.
Capacity: 0.1-15T

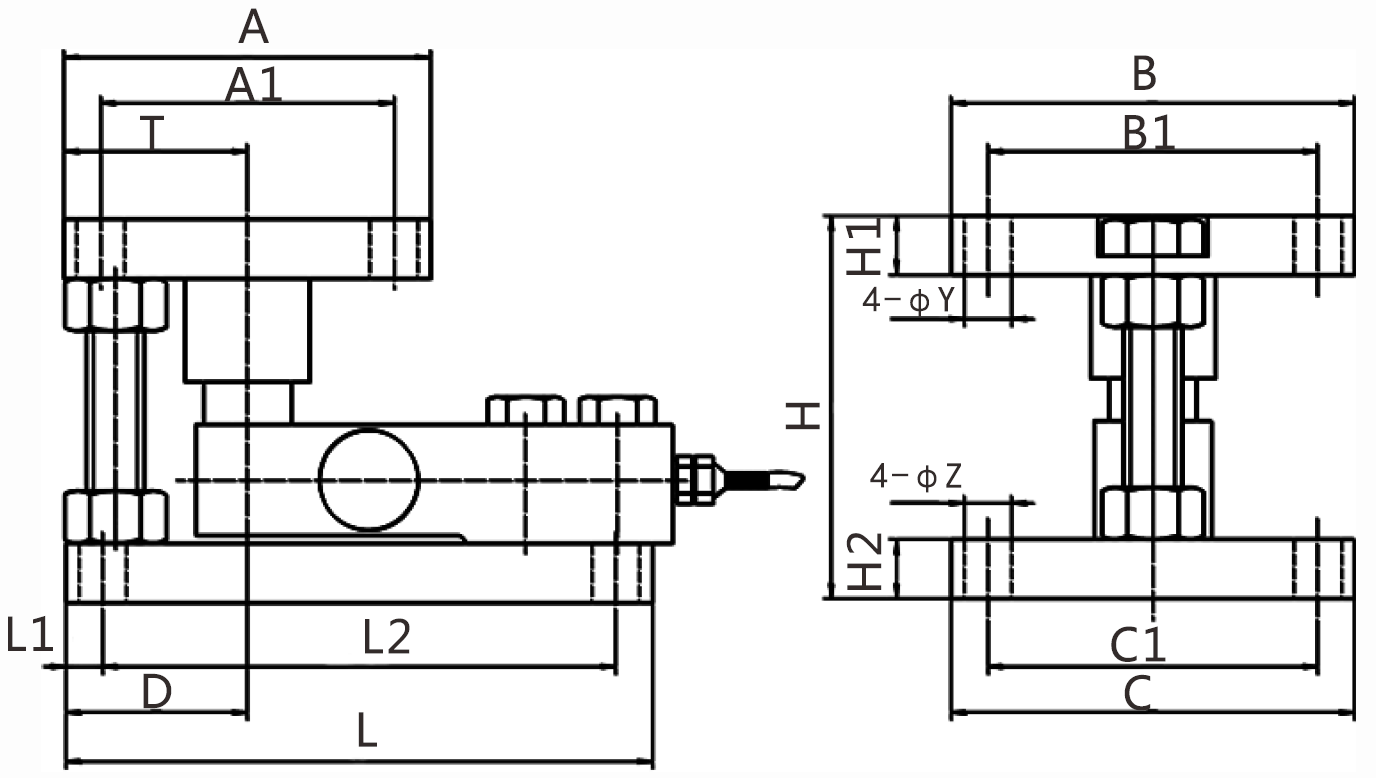

Dimensions(mm):
Specification:
|
Rated output
|
2.0±0.002mV/V
|
|
Non-linearity
|
±0.05%F·S
|
|
Hysteresis
|
±0.03%F·S
|
|
Repeatability
|
±0.03%F·S
|
|
Creep(30min)
|
±0.03%F·S
|
|
Zero balance
|
±1%F·S
|
|
Temperature effect on zero
|
±0.03%F·S/10℃
|
|
Temperature effect on output
|
±0.03%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
350Ω
|
|
Output impedance
|
350Ω
|
|
Safe overload
|
150%F·S
|
|
Ultimate overload
|
200%F·S
|
|
Insulation
|
≥2000MΩ(100VDC)
|
|
Recommended excitation
|
5V-15V
|
|
Protection Class
|
IP67
|
|
Cable
|
Φ5x5m
|
|
Material
|
Alloy steel / Stainless steel
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
