Six axis load cell 6 axes force torque sensor 3kKN 10KN 20KN 100Nm 300Nm 500Nm
Model:YGX125 6 axis load cell
Features & Applications:
1) Made of high-strength and high-quality 17-4PH stainless steel, with high yield strength and overload capacity;
2) The international high level strain gauge chip is adopted, which can achieve high resolution, high response frequency and high test precision points;
3) 100% independent structural design, carefully tested before delivery, and extremely high coupling accuracy;
4) Multiple communication interface protocols can be selected, and debugging software or testing software can be provided;
5) Bending resistant high flexible cable;
6) Applicable to machine tool cutting, drilling and milling cutting force testing, rehabilitation medical equipment, aircraft lift testing, robot force control grinding, assembly, drag teaching and various scientific research;
Capacity: Fx/Fy/Fz:3KN/10KN/20KN Mx/My/Mz:100/300/500Nm (Custom-made is available)

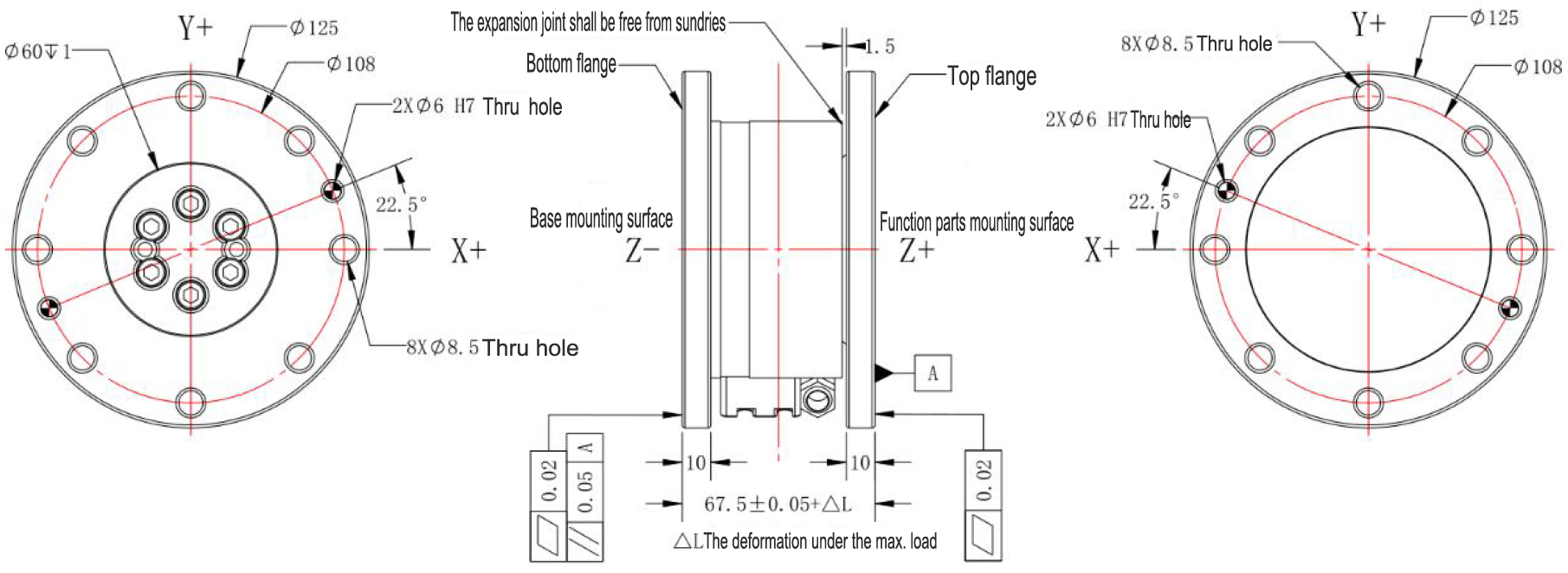

Dimensions(mm)
Specifications:
|
Model
|
YGX125-3KN
|
YGX125-10KN
|
YGX125-20KN
|
|
Capacity
|
Fx/Fy/Fz
|
3KN/3KN/3KN
|
10KN/10KN/10KN
|
20KN/20KN/20KN
|
|
Mx/My/Mz
|
100Nm
|
300Nm
|
500Nm
|
|
Mechanical characteristic
|
|
Weight
|
About 3kg
|
|
Material
|
Stainless steel 17-4PH
|
|
Size
|
Φ125mm×67.5mm
|
|
Protection class
|
IP65
|
|
Overload
|
300%FS
|
|
Rigidity
(Calculation)
|
Fx
|
1.6x107 N/m
|
|
Fy
|
1.6x107 N/m
|
|
Fz
|
1.3x107 N/m
|
|
Mx
|
6059.99Nm/rad
|
|
My
|
6059.99Nm/rad
|
|
Mz
|
10056.99Nm/rad
|
|
Electrical characteristics
|
|
Input/output impedance
|
350Ω
|
|
Communication interface
|
Mv matrix
|
|
Working voltage
|
5-15V DC
|
|
Cable length
|
5m
|
|
Accuracy class
|
|
Resolution ratio
|
Better than 0.1% FS
|
|
Nonlinear
|
Better than 0.2% FS
|
|
Accuracy
|
Better than 0.3% FS
|
|
Repeatability
|
Better than 0.2% FS
|
|
Coupling accuracy
|
Better than 1.5% FS
|
|
Hysteresis
|
Better than 0.3% FS
|
|
Temperature characteristics
|
|
Temperature zero drift
|
0.2%FS/10℃
|
|
Zero drift
|
0.1%FS/30min
|
|
Storage temperature
|
-25°C ～70°C
|
|
Operating environment
|
0°C～40°C，20～80% RH
|
|
Extension interface
|
0±10v, /Ethercat,/Modbus-TCP,/Ethernet,/Canopen,/Modbus-RTU
|
High quality strain gauge chip
Overload capacity introduction, which is a concern of multi-dimensional force sensor customers, and also an important reason for sensor failure (Sensor value is high, please contact our engineers for model selection)
1: The selection of measuring range shall not only consider the applied external force, but also fully consider the dead weight of fixture and workpiece and the bending moment generated by them.
2: The bending moment caused by the external force due to the force arm (the distance from the center of the sensor to the force point) shall be considered separately.
3: The overall dimension of the sensor is similar to that of the workpiece fixture.
Possible overload
Overload capacity introduction, which is a concern of multi-dimensional force sensor customers, and also an important reason for sensor failure (Sensor value is high, please contact our engineers for model selection)
1: The selection of measuring range shall not only consider the applied external force, but also fully consider the dead weight of fixture and workpiece and the bending moment generated by them.
2: The bending moment caused by the external force due to the force arm (the distance from the center of the sensor to the force point) shall be considered separately.
3: The overall dimension of the sensor is similar to that of the workpiece fixture.

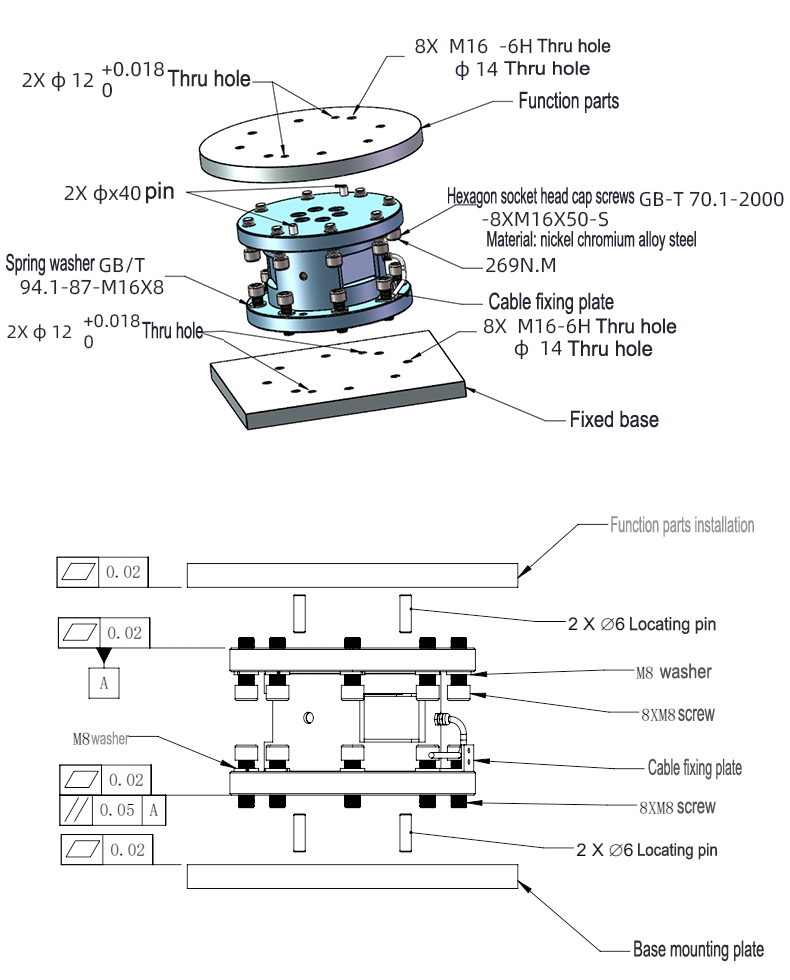

Installation diagram

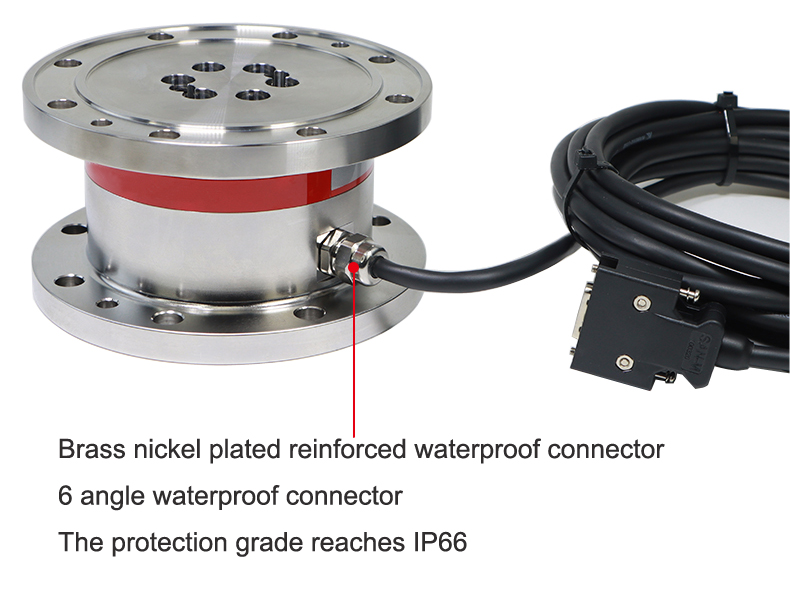

High flexible wire, stable signal. High quality product.
