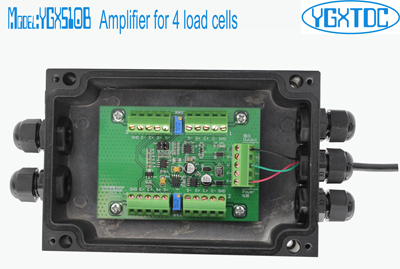

Model: YGX510B Amplifier for 4 load cells
YGX510B amplifier adopts aluminum profile housing. The internal imported high-performance device is used to accurately amplify the sensor output signal. The internal voltage regulation, constant current supply bridge, voltage and current conversion, impedance matching, linear compensation, humidity compensation, etc. Convert the mechanics and quantity into standard current and voltage signal output, which can be switched from 0-5V/0-10V. It can be directly connected to the interface of the automatic control device PLC single-chip host computer terminal or computer. With standard signal external zero adjustment, external adjustment gain function, input overload protection, output short circuit protection.

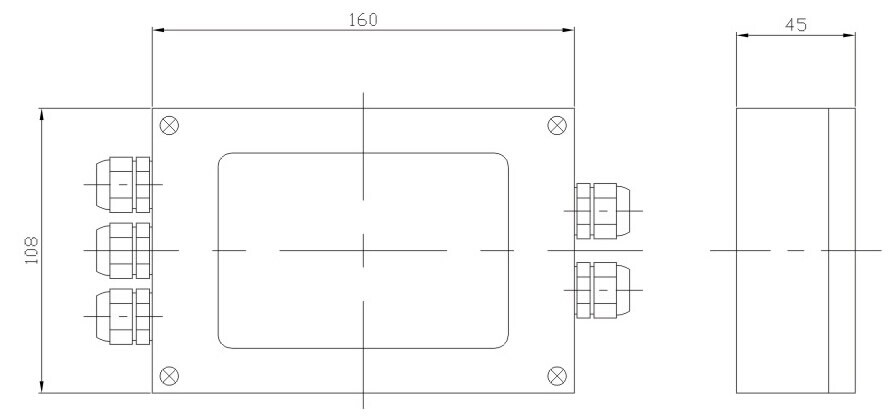

Dimensions:
Specifications:
|
Accuracy
|
0.05%
|
Power supply
|
15-30VDC
|
|
Output
|
0-5V/0-10V
0-20mA/4-20mA
|
Material
|
Aluminum alloy
|

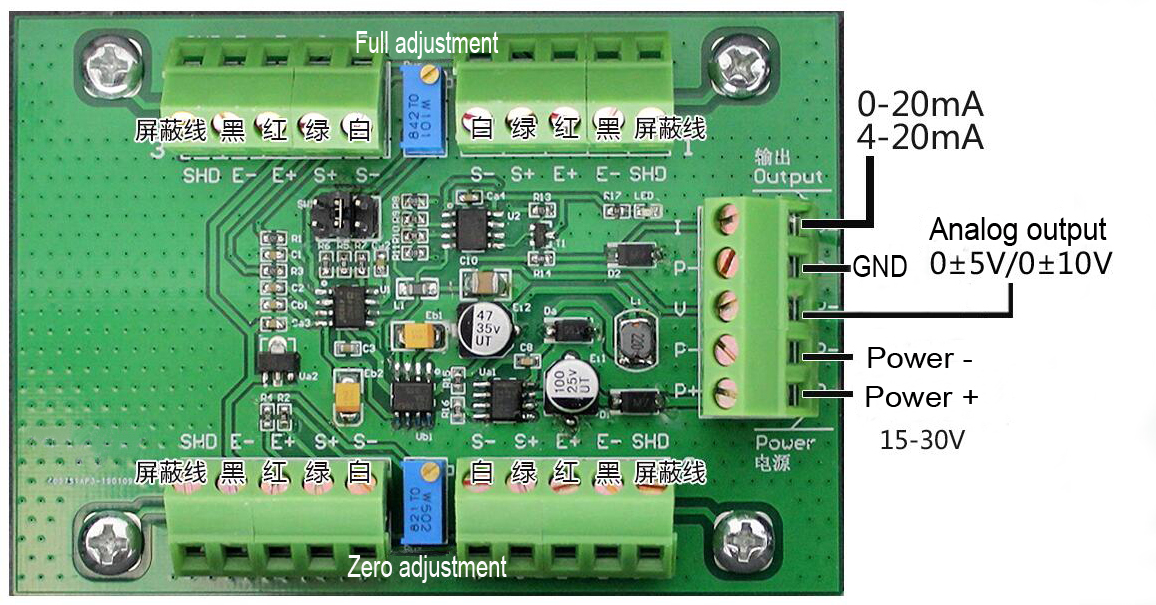

Wiring:

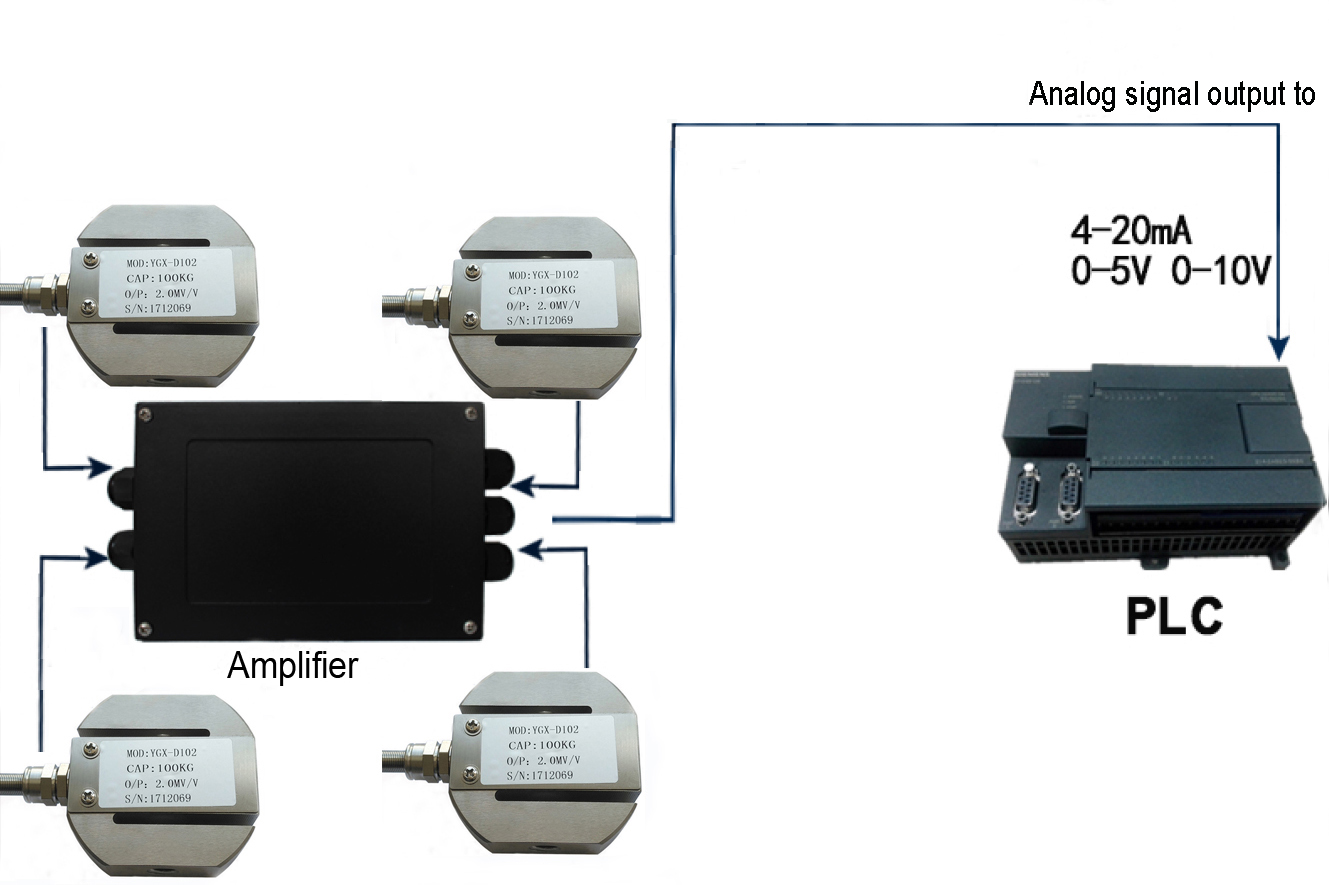

Connection diagram:
