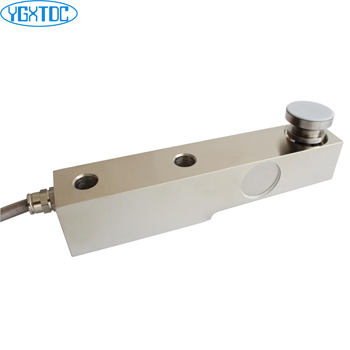

Model: YGX-D302
Features and Applications
The sensor elastic body was shear or bending of cantilever beam structure, one end fixed, one end bearing, shape of low height, high strength structure, it can be used for a variety of tensile and compressive force bearing and the measurement. It has: dustproof sealing, wide capacity, high precision, stable and reliable performance, it is convenient to install and use.
Apply to electronic scale, weighing apparatus etc., such as weighing the various measuring, weighing industrial automation measurement and control system.
Capacity: 0.5T-25T

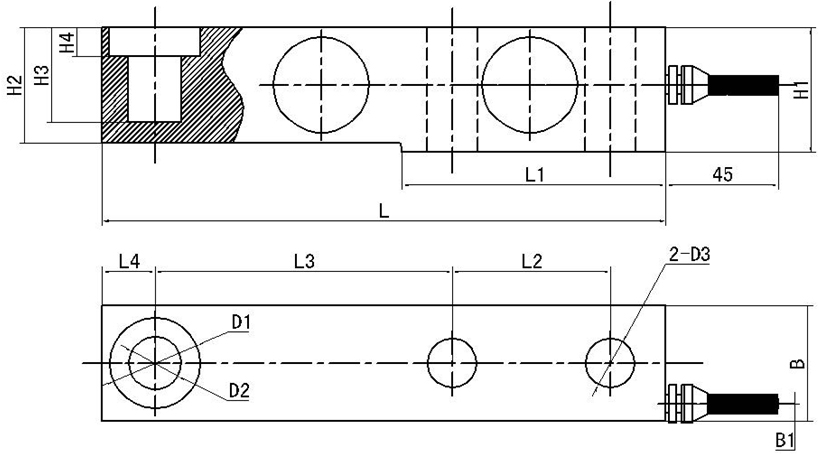

Dimensions(mm):
|
Capacity
|
L
|
L1
|
L2
|
L3
|
L4
|
H1
|
H2/B
|
B1
|
H3
|
H4
|
D1
|
D2
|
D3
|
|
0.5,1,2,3T
|
203
|
95
|
64
|
98
|
22
|
43
|
36.6
|
7
|
30.5
|
8
|
φ32
|
φ16
|
φ13
|
|
5, 7.5T
|
235
|
110
|
66
|
124
|
22
|
52
|
48
|
7
|
30
|
12
|
φ38
|
φ22
|
φ21
|
|
10T
|
279
|
133
|
82
|
140
|
32
|
67
|
60
|
8.5
|
20
|
8.5
|
φ48
|
φ32
|
φ28
|
|
15,20,25T
|
318
|
153
|
89
|
159
|
38
|
82.5
|
70
|
9.5
|
24
|
9.5
|
φ54
|
φ38
|
φ34
|
Specification:
|
Rated output
|
2.0±0.05mV/V
|
|
Non-linearity
|
≤±0.03%F·S
|
|
Hysteresis
|
≤±0.03%F·S
|
|
Repeatability
|
≤±0.02%F·S
|
|
Creep(30min)
|
≤±0.03%F·S
|
|
Zero balance
|
≤±1%F·S
|
|
Temperature effect on zero
|
≤±0.03%F·S/10℃
|
|
Temperature effect on output
|
≤±0.03%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
350±20Ω
|
|
Output impedance
|
350±5Ω
|
|
Safe overload
|
≤150%F·S
|
|
Insulation
|
≥5000MΩ(50VDC)
|
|
Recommended excitation
|
10V-15V
|
|
Protection Class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
