Model: YGX-ST33 400N Six-dimensional force sensor - special support for industrial robots
Features and Applications
1. Six-dimensional force sensor specially designed for industrial robots;
2. Integrated digital design, internal integrated signal acquisition and processing module, can directly output force value / torque value;
3. Large torque measurement range, especially suitable for industrial robot wrist force sensor;
4. Structure decoupling design, small inter-dimensional coupling;
5. Support 485/CAN/USB/Ethernet UDP communication and support analog output;
6. High cost performance force control solution.
Capacity：
|
Capacity
|
Resolution
|
Non-linearity
|
Hysteresis
|
Sizes |
|
Fx/Fy/Fz :200/200/400N
Mx/My/Mz :20/20/20Nm
|
Fx/Fy/Fz :0.2N
Mx/My/Mz : 0.02Nm
|
＜0.08%
|
＜0.1%
|
φ:91mm
H:36.6mm
|
|
Fx/Fy/Fz :300/300/600N
Mx/My/Mz :30/30/30Nm
|
Fx/Fy/Fz :0.2N
Mx/My/Mz : 0.02Nm
|
＜0.1%
|
＜0.1%
|
φ:91mm
H:36.6mm
|
|
Fx/Fy/Fz :400/400/800N
Mx/My/Mz :40/40/40Nm
|
Fx/Fy/Fz :0.2N
Mx/My/Mz : 0.02Nm
|
＜0.1%
|
＜0.2%
|
φ:90mm
H:37.8 mm
|
|
Fx/Fy/Fz :1600/1600/3200N
Mx/My/Mz :200/200/200Nm
|
Fx/Fy/Fz:1.6N/1.6N/3.2N
Mx/My/Mz : 0.2Nm
|
＜0.5%
|
＜0.8%
|
φ:90mm
H:39.4mm
|
|
Fx/Fy/Fz :2500/2500/5000N
Mx/My/Mz :300/300/300Nm
|
Fx/Fy/Fz :2.5N2.5N/5N
Mx/My/Mz : 0.3Nm
|
＜0.6%
|
＜1%
|
φ:90mm
H:39.4mm
|
Product picture：
Specification:
|
Capacity
|
Fx/Fy/Fz :200N /200N /400N
Mx/My/Mz :20Nm/20Nm/20Nm
|
|
Resolution
|
Fx/Fy/Fz :0.2/0.2/0.2N
Mx/My/Mz : 0.02/0.02/0.02Nm
|
|
Non-linearity
|
＜0.08%
|
|
Hysteresis
|
＜0.1%
|
|
Excitation
|
5V
|
|
Operation temp range
|
-10 ~ +40℃
|
|
Output voltage (mv/v)
|
Decoupling
|
|
Bridge impedance
|
350±1Ω
|
|
Safe overload
|
200%
|
|
Protection Class
|
IP65
|
|
Weight
|
0.66kg
|
|
Sizes
|
Diameter：90mm Height：37.8mm
|
Application field

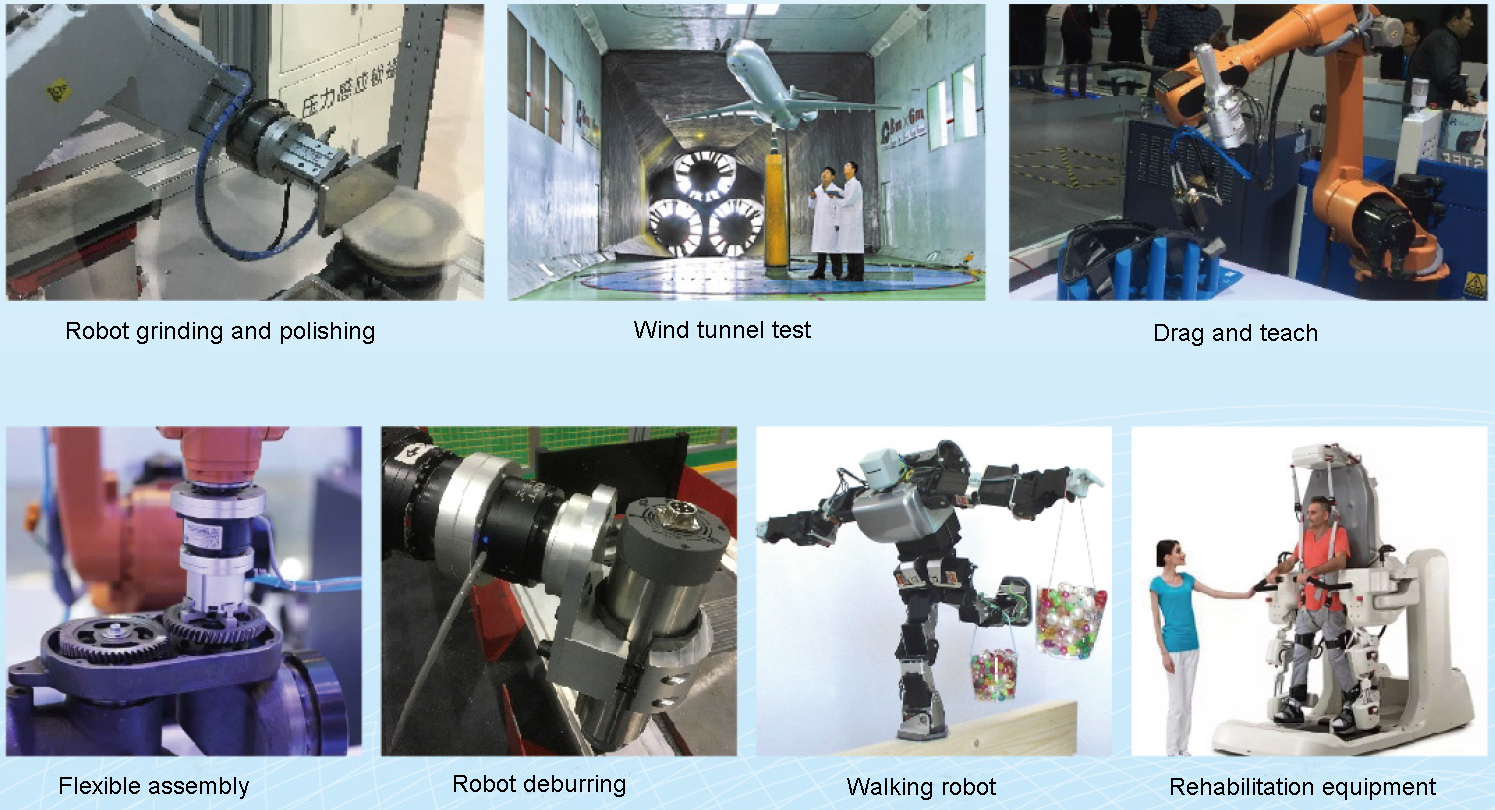

Typical application
