Model: YGX-SL335 Medium-range six dimensional force sensor
Features and Applications
Novel structure
High sensitivity and high resolution
High response frequency
Capacity :Fx/Fy/Fz :500/500/500N Mx/My/Mz :10000/10000/1000Nmm

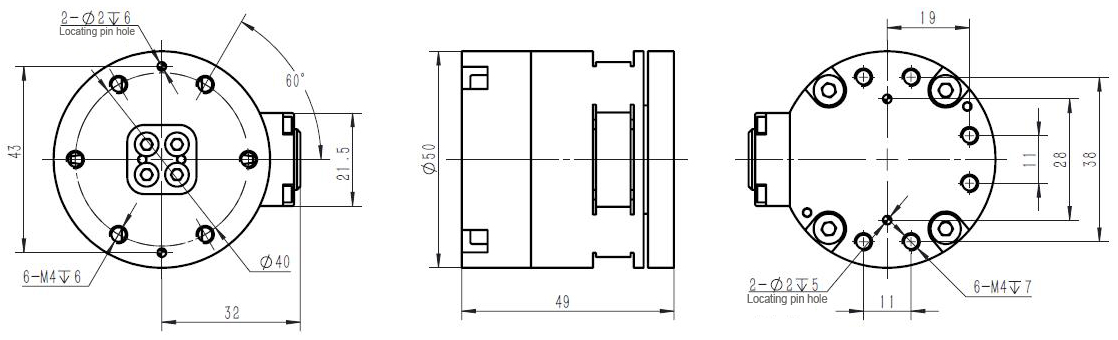

Dimensions（mm）：
Specification:
|
|
Fx
|
Fy
|
Fz
|
Mx
|
My
|
Mz
|
|
Capacity
|
500N
|
500N
|
500N
|
10000Nmm
|
10000Nmm
|
10000Nmm
|
|
Resolution
|
0.23%F.S
|
0.21%F.S
|
0.14%F.S
|
0.24%F.S
|
0.32%F.S
|
0.13%F.S
|
|
Nonlinearity
|
0.45%F.S
|
0.35%F.S
|
0.37%F.S
|
0.13%F.S
|
0.45%F.S
|
0.23%F.S
|
|
Hysteresis
|
0.65%F.S
|
0.23%F.S
|
0.22%F.S
|
0.42%F.S
|
0.25%F.S
|
0.21%F.S
|
|
Zero Balance
|
|
|
|
|
|
|
|
Repeatability
|
0.3%F.S
|
0.07%F.S
|
0.15%F.S
|
0.28%F.S
|
0.12%F.S
|
0.11%F.S
|
|
Precision
|
0.54%F.S
|
0.47%F.S
|
0.11%F.S
|
0.23%F.S
|
0.43%F.S
|
0.14%F.S
|
|
Excitation
|
≥5V
|
|
Operation temp range
|
-10~ +40℃
|
|
Safe overload
|
150%F.S
|
|
Material
|
Aluminum alloy
|
