Model: YGX-SL304 Large range three dimensional force sensor
Features and Applications
High precision
High resolution
Capacity : 4000N

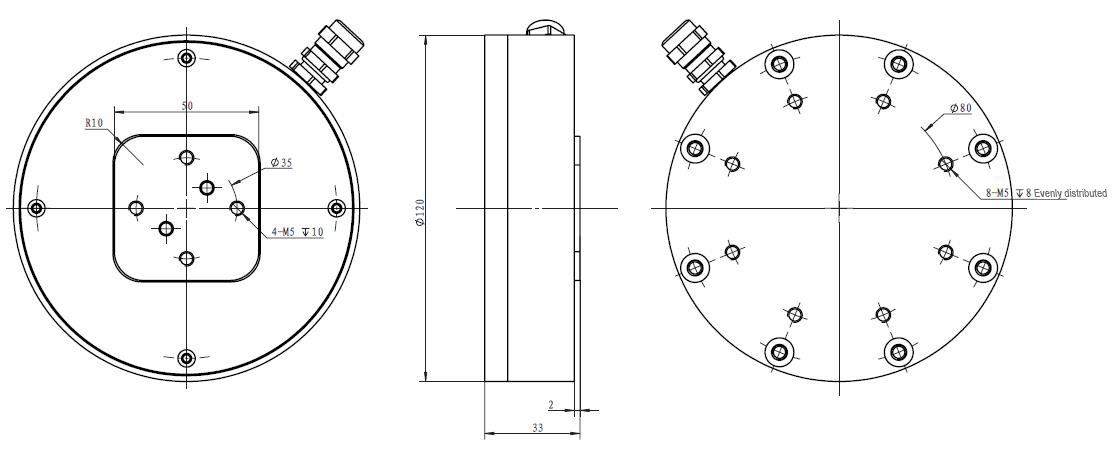

Dimensions（mm）：
Specification:
|
|
Fx
|
Fy
|
Fz
|
|
Capacity
|
4000N
|
4000N
|
4000N
|
|
Resolution
|
0.25%F.S
|
0.23%F.S
|
0.13%F.S
|
|
Nonlinearity
|
0.67%F.S
|
0.63%F.S
|
0.16%F.S
|
|
Hysteresis
|
0.62%F.S
|
0.57%F.S
|
0.08%F.S
|
|
Zero Balance
|
0.20%F.S
|
0.16%F.S
|
0.21%F.S
|
|
Repeatability
|
0.72%F.S
|
0.54%F.S
|
0.23%F.S
|
|
Precision
|
0.42%F.S
|
0.33%F.S
|
0.13%F.S
|
|
Excitation
|
≥5V
|
|
Operation temp range
|
0~ +40℃
|
|
Safe overload
|
150%F.S
|
|
Material
|
Alloy steel
|
