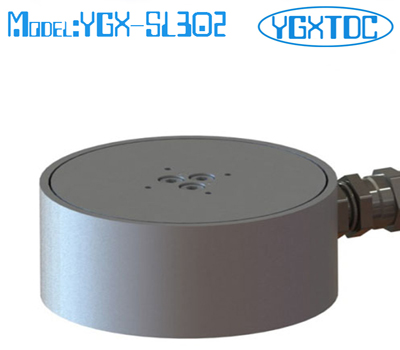

Model: YGX-SL302 Small range three dimensional force sensor
Features and Applications
Compact size
High resolution
Suitable for medical devices and scientific equipment
Capacity : 200N

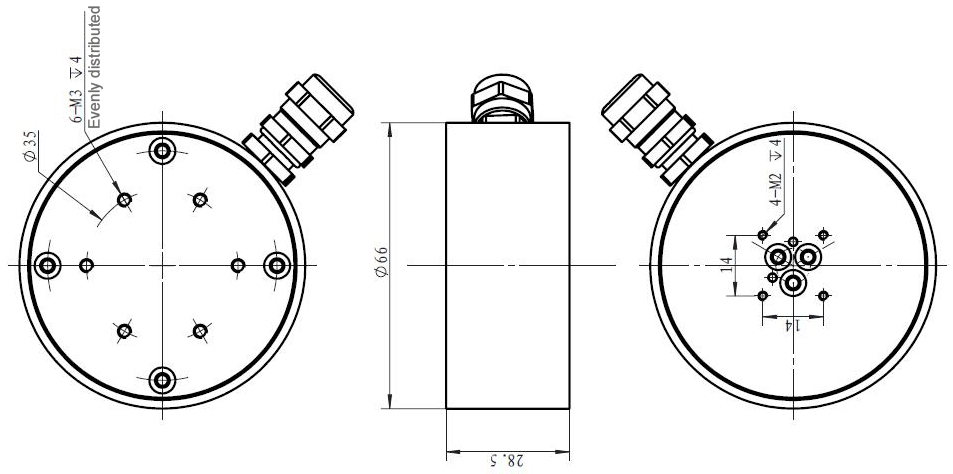

Dimensions（mm）：
Specification:
|
|
Fx
|
Fy
|
Fz
|
|
Capacity
|
200N
|
200N
|
200N
|
|
Resolution
|
10mN
|
10mN
|
10mN
|
|
Nonlinearity
|
1.02%F.S
|
0.53%F.S
|
0.06%F.S
|
|
Hysteresis
|
1.06%F.S
|
0.53%F.S
|
0.03%F.S
|
|
Zero Balance
|
0.76%F.S
|
0.45%F.S
|
0.23%F.S
|
|
Repeatability
|
1.08%F.S
|
0.41%F.S
|
1.03%F.S
|
|
Precision
|
1.08%F.S
|
0.97%F.S
|
0.08%F.S
|
|
Excitation
|
≥5V
|
|
Operation temp range
|
-10~ +40℃
|
|
Safe overload
|
150%F.S
|
|
Material
|
Alloy steel
|
