Model: YGX-SD301 Three dimensional force sensors with mN- level resolution
Features and Applications
Protected invention patent
High sensibility and high resolution
Suitable for scientific & technological research
Capacity : 1.5N ; 1.5N ; 1.5N

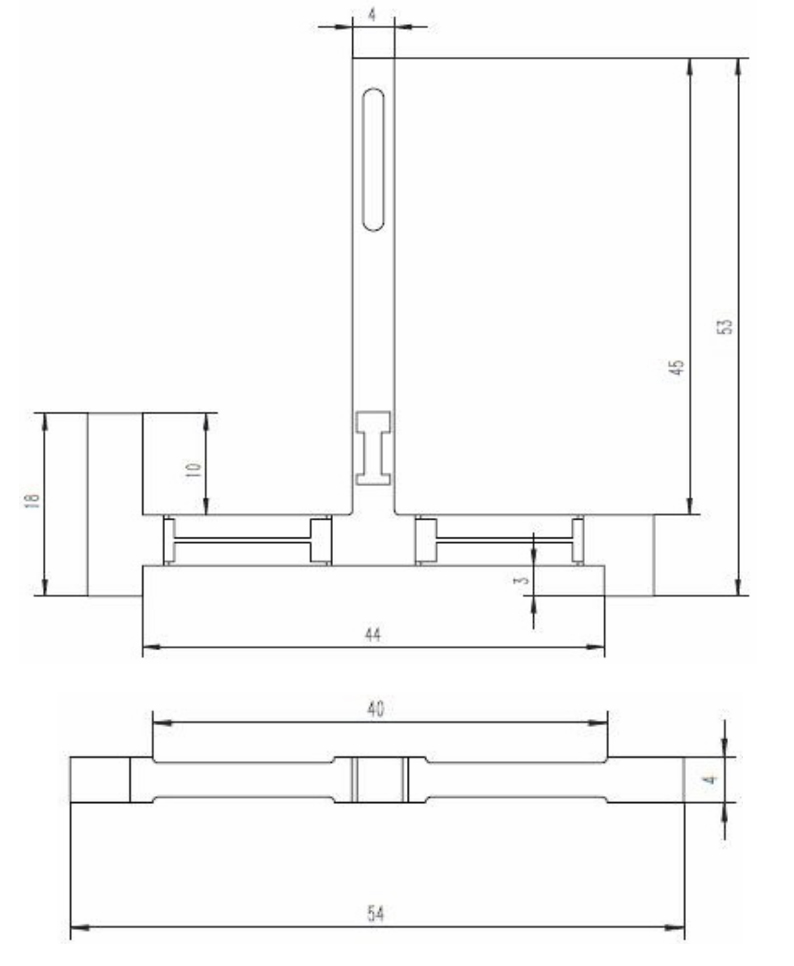

Dimensions（mm）：
Specification:
|
|
Fx
|
Fy
|
Fz
|
|
Capacity
|
1.5N
|
1.5N
|
1.5N
|
|
Resolution
|
3mN
|
3mN
|
1mN
|
|
Nonlinearity
|
0.11%F.S
|
0.12%F.S
|
0.11%F.S
|
|
Hysteresis
|
0.25%F.S
|
0.22%F.S
|
0.21%F.S
|
|
Zero Balance
|
|
|
|
|
Repeatability
|
0.22%F.S
|
0.23%F.S
|
0.21%F.S
|
|
Precision
|
0.44%F.S
|
0.41%F.S
|
0.43%F.S
|
|
Excitation
|
≥5V
|
|
Operation temp range
|
-10~ +45℃
|
|
Safe overload
|
150%F.S
|
|
Material
|
Aluminum alloy
|
