Model: YGX-SD205 Medium-range two dimensional force sensor
Features and Applications
Ring-like structure
High stability
High resolution
Suitable for material testing machines
Capacity : 500N

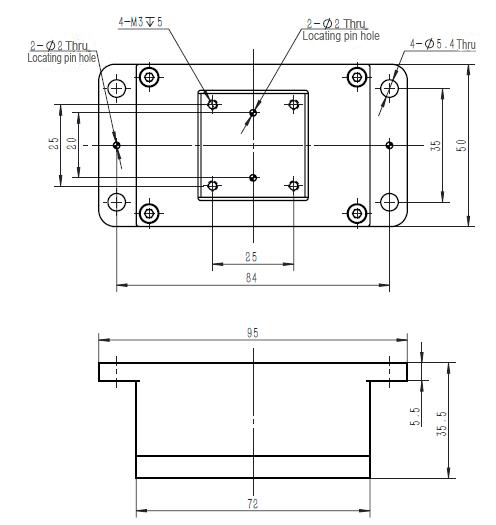

Dimensions（mm）：
Specification:
|
|
Fx
|
Fz
|
|
Capacity
|
500N
|
500N
|
|
Resolution
|
100mN
|
100mN
|
|
Nonlinearity
|
0.08%F.S
|
0.28%F.S
|
|
Hysteresis
|
0.06%F.S
|
0.23%F.S
|
|
Zero Balance
|
0.18%F.S
|
0.23%F.S
|
|
Repeatability
|
0.05%F.S
|
0.26%F.S
|
|
Precision
|
0.26%F.S
|
0.49%F.S
|
|
Excitation
|
≥5V
|
|
Operation temp range
|
-10~ +40℃
|
|
Safe overload
|
150% F.S
|
|
Material
|
Aluminum alloy
|
