Model: YGX-SD101 High precision shear force sensor
Features and Applications
High precision shear force sensor
High precision
High linearity
High resolution
Exceedingly suitable for shear forces
Capacity : 100N

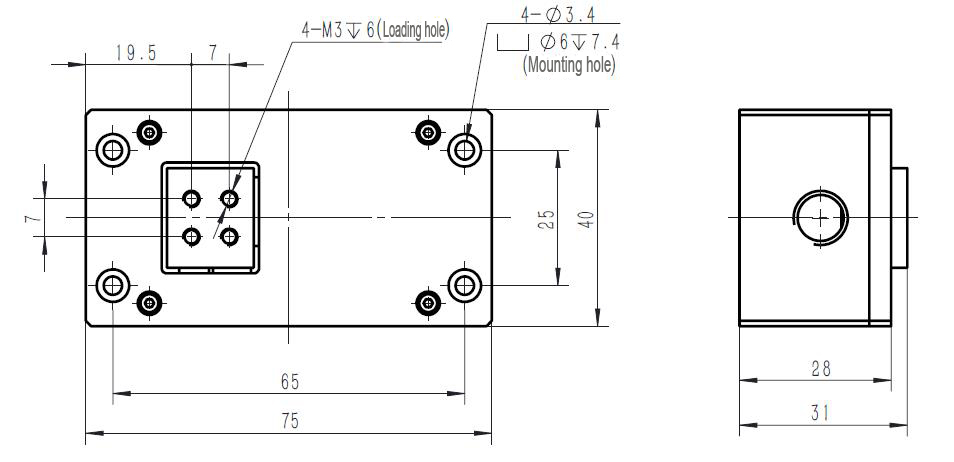

Dimensions（mm）：
Specification:
|
Capacity
|
100N
|
|
Resolution
|
5mN
|
|
Non-linearity
|
±0.02%F.S
|
|
Hysteresis
|
±0.03%F.S
|
|
Zero Balance
|
0.31%F.S
|
|
Repeatability
|
±0.02%F.S
|
|
Precision
|
0.05%F.S
|
|
Excitation
|
≥5V
|
|
Operation temp range
|
0 ~ +40℃
|
|
Safe overload
|
150% F.S
|
|
Material
|
Aluminum alloy
|
