50kg 100kg 200kg 300kg 500kg 1000kg 3000kg 5000kg micro tension compression load cell force sensor
Model: YGX-MH101
Features & Applications:
The sensor adopts the flat diaphragm pressure sensing diaphragm, shell and diaphragm integrated structure, small size, stable and reliable performance.
Industrial automation measurement and control system is suitable for various kinds of weighing and force measurement.
Weighing, instantaneous measurement, impact force, high-speed response sensor, pressure measurement use.
Capacity ：
50kg,100kg, 200kg, 300kg, 500kg ,1000kg, 3000kg, 5000kg

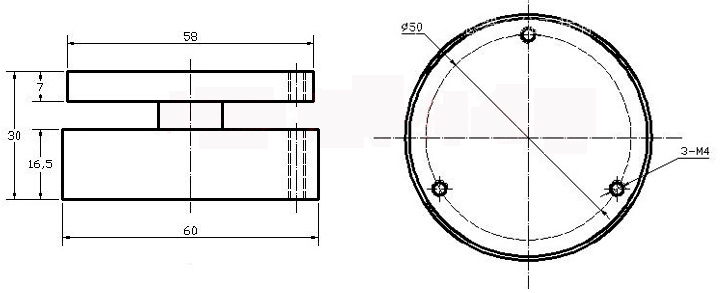

Dimensions(mm):
Specification:
|
Rated output
|
1.0~2.0±0.05mV/V
|
|
Non-linearity
|
≤±0.3%F·S
|
|
Hysteresis
|
≤±0.3%F·S
|
|
Repeatability
|
≤±0.3%F·S
|
|
Creep(30min)
|
≤±0.1%F·S
|
|
Zero balance
|
≤±1%F·S
|
|
Temperature effect on zero
|
≤±0.1%F·S/10℃
|
|
Temperature effect on output
|
≤±0.1%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
350±50Ω
|
|
Output impedance
|
350±5Ω
|
|
Safe overload
|
≤150%F·S
|
|
Insulation
|
≥2000MΩ(50VDC)
|
|
Recommended excitation
|
10V-15V
|
|
Protection Class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
