Miniature load cell 5KG 10KG 20KG 30KG 50KG 100KG 200KG 500KG 1000KG 2000KG 3000KG 5000KG
Model:YGX-HW116
Features & Applications:
Stainless steel or the aluminum diaphragm type structure, small size, corrosion resisting.
Mainly used for force measurement in different small space, industrial and scientific research.
Capacity:5, 10, 20, 30, 50, 100, 200, 500, 1000, 2000, 3000, 5000KG

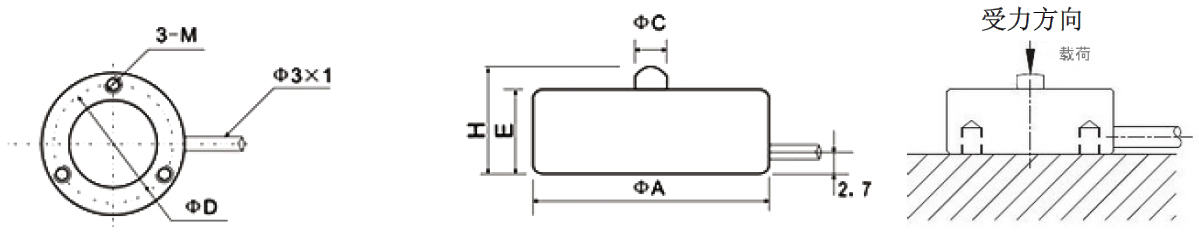

Dimensions(mm):
|
Size(mm)
Capacity
|
ΦA
|
ΦC
|
ΦD
|
H
|
E
|
M
|
H1
|
SR
|
|
5~200KG
|
20
|
2.5
|
15.5
|
12
|
10
|
M3
|
2.7
|
2
|
|
300~1000KG
|
26
|
5
|
18.5
|
15
|
11.5
|
M4
|
3.5
|
6
|
|
2000KG
|
30
|
6
|
20
|
18
|
14
|
M4
|
3.5
|
15
|
|
3000-5000KG
|
37.7
|
10.8
|
31
|
15.5
|
14
|
M2.5
|
3.5
|
50
|
Specification:
|
Rated output
|
1.0～2.0 mV/V
|
|
Composite error
|
≤±0.5%F·S
|
|
Creep(30min)
|
≤±0.5%F·S
|
|
Zero balance
|
≤±1%F·S
|
|
Temperature effect on zero
|
≤±0.05%F·S/10℃
|
|
Temperature effect on output
|
≤±0.05%F·S/10℃
|
|
Operation temperature range
|
-30℃～+70℃
|
|
Input impedance
|
400±10Ω
|
|
Output impedance
|
350±10Ω
|
|
Safe overload
|
≤150%F·S
|
|
Ultimate Overload
|
200% F.S
|
|
Insulation
|
≥5000MΩ(50VDC)
|
|
Recommended excitation
|
5V-12V
|
|
Maximum excitation
|
15V
|
|
Protection Class
|
IP67
|
|
Cable
|
Ø3.5mm × 2m
|
|
Material
|
Stainless steel
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
