Model: YGX-R42 Compreesion load cell
Features & Applications:
Thru hole structure
Stainless steel, low deflection
Metal foil strain gauge technology
Press-in force measurement
Long term stability
Capacity :1000 kg(Custom-made is available)

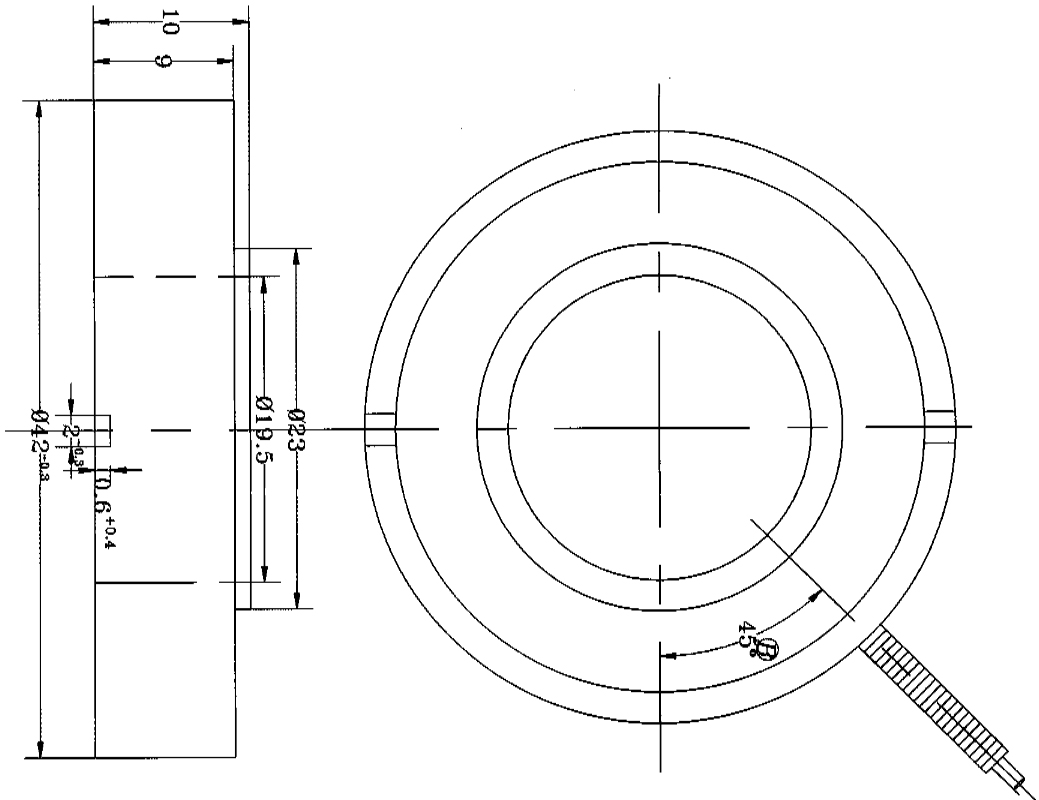

Dimensions(mm):
Specification
|
Rated output
|
2.0±10% mV / V
|
|
Zero balance
|
± 1 % F.S.
|
|
Non-linearity
|
1.0 % F.S.
|
|
Hysteresis
|
0.5 % F.S.
|
|
Repeatability
|
0.5% F.S.
|
|
Creep (30min)
|
0.5 % F.S.
|
|
Temp. effect on output
|
0.5 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.5 % F.S. / 10ºC
|
|
Input impedance
|
400 ± 50Ω
|
|
Output impedance
|
350 ± 5Ω
|
|
Insulation
|
≥2000MΩ/50VDC
|
|
Recommended excitation
|
5~10V
|
|
Maximum excitation
|
10V
|
|
Compensated temp range
|
- 10 ~ 40 ºC
|
|
Operation temp range
|
- 20 ~ 60ºC
|
|
Safe overload
|
120% F.S.
|
|
Ultimate overload
|
150 % F.S.
|
|
Cable size
|
Ø2×3000 mm
|
|
Protection class
|
IP66
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
