Model: YGX-ZL104
Features & Applications:
Side pressure tension load cell is the double shear beam structure, easy installation, simple operation, dedicated to the measurement of wire rope tension. Steel wire rope is fixed on the sensor through the U bolt, when the wire rope tension, force acting on the sensor through a guide wheel.
Mainly used in crane, water, coal and other industries of overload control and display process.
Capacity: 1, 2, 5, 10 T

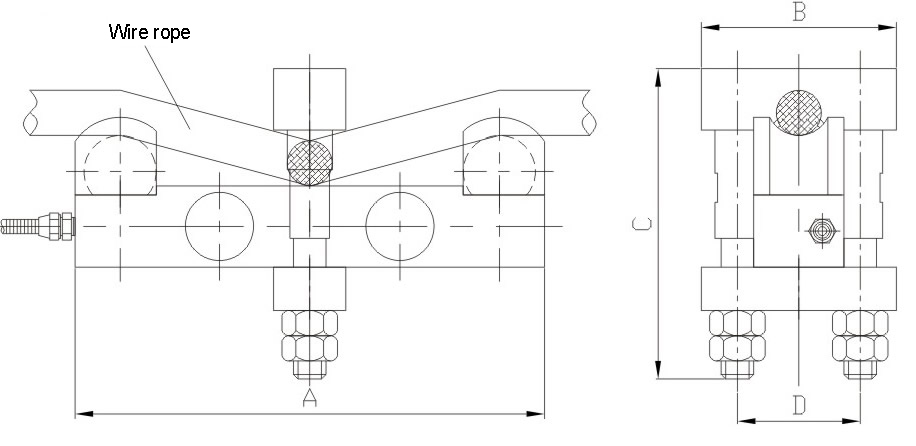

Dimensions(mm)：
|
Wire rope tension
|
Capacity
|
Wire rope diameter
|
A
|
B
|
C
|
D
|
|
1t
|
1t
|
Φ6-14
|
160
|
76
|
117
|
45
|
|
2t
|
1t
|
Φ10-18
|
160
|
76
|
117
|
45
|
|
5t
|
2t
|
Φ16-26
|
160
|
76
|
117
|
45
|
|
10-20t
|
5-10t
|
Φ24-36
|
260
|
108
|
170
|
68
|
|
20t
|
10t
|
Φ24-36
|
272
|
112
|
175
|
72
|
Specification:
|
Rated output
|
1.5±0.05mV/V
|
|
Non-linearity
|
≤±0.05%F·S
|
|
Hysteresis
|
≤±0.05%F·S
|
|
Repeatability
|
≤±0.05%F·S
|
|
Creep(30min)
|
≤±0.05%F·S
|
|
Zero balance
|
≤±1%F·S
|
|
Temperature effect on zero
|
≤±0.05%F·S/10℃
|
|
Temperature effect on output
|
≤±0.05%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
750±20Ω
|
|
Output impedance
|
700±5Ω
|
|
Safe overload
|
≤150%F·S
|
|
Insulation
|
≥5000MΩ(50VDC)
|
|
Recommended excitation
|
10V-15V
|
|
Protection Class
|
IP68
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
