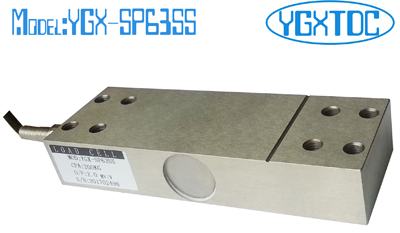

Stainless steel load cell sensor 50kg 60kg 100kg 150kg 200kg 250kg 300kg
Model: YGX-SP63
Features & Applications:
Made of stainless steel.
Single point parallel beam, low profile aluminum load cell, used for electronic scales, platform scales and industrial weighing systems.
Capacity: 50, 60, 100, 150, 200, 250, 300 kg

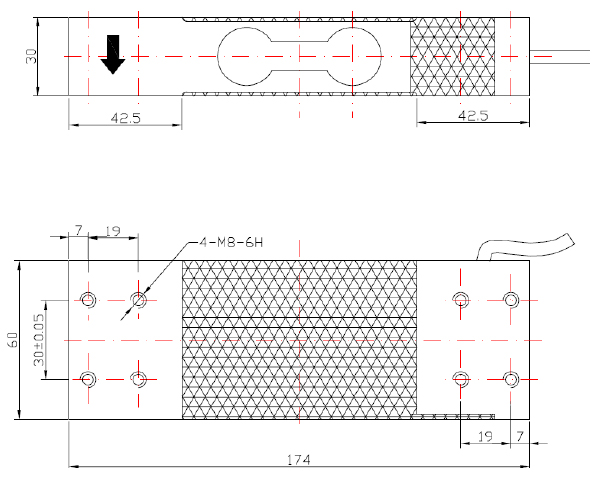

Dimensions(mm):
Specifications
|
Rated Output
|
2.0±10%mv/v
|
|
Zero Balance
|
±2%F.S.
|
|
Non-linearity
|
0.02%F.S.
|
|
Hysteresis
|
0.02%F.S.
|
|
Non-Repeatability
|
0.02%F.S.
|
|
Creep (30min)
|
0.03%F.S.
|
|
Temp. Effect On Output
|
0.025%F.S./10℃
|
|
Temp. Effect On Zero
|
0.025%F.S./10℃
|
|
Input Impedance
|
410±15Ω
|
|
Output Impedance
|
350±3Ω
|
|
Insulation
|
>2000MΩ/50VDC
|
|
Recommended Excitation
|
10V
|
|
Maximum Excitation
|
15V
|
|
Compensated Temp. Range
|
-10~40℃
|
|
Operating Temp. Range
|
-20~60℃
|
|
Safe Overload
|
150%F.S.
|
|
Ultimate Overload
|
200%F.S.
|
|
Cable Size
|
φ5×2000mm
|
|
Platform Size
|
450×550(mm)
|
|
Protection Class
|
IP65
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
|
|
