Model: YGX-TQ803F Micro torque sensor
Product overview:
The compact type torque sensor is a new product developed on the basis of the special technology of strain bridge, which is suitable for various kinds of torque measuring occasions with small volume and high speed. The output of the product is 5 to 15kHz frequency signal or 4 ~ 20mA current signal, suitable for long-distance transmission. The product has the advantages of small size, convenient use and installation, strong anti-interference ability, and is an ideal product for replacing the imported torque sensor.
Features
1. Small size, light weight, easy to install;
2. Can measure the static torque, you can also measure the rotation torque;
3. Detection of high precision, good stability, strong anti-interference;
4. Without repeated zero can be measured continuously positive and negative torque;
5. No wear parts such as collecting ring, can run at high speed for a long time;
6. Strain Elastomer strength, can withstand 150% load;
7. Strong anti-interference, can be anywhere, any direction of installation;
8. Sensor part can be used independently from the secondary instrument, directly with the measurement board, PLC or DCS component torque measuring device
Capacity: 5Nm,10Nm,20Nm,50Nm,100Nm,200Nm,500Nm
Specifications
|
Capacity
|
5Nm,10Nm,20Nm,50Nm,100Nm,200Nm,500Nm
|
|
Power supply
|
±15V DC(Applicable frequency signal output )
24V DC (Suitable for voltage or current signal output )
|
|
Torque signal
|
5～15Khz（Amplitude 12V,Zero10kHz）、4～20mA、1～5V、0-10V
|
|
Speed range
|
0~1000, 3000, 6000, and 8000 revolutions per minute
|
|
Speed signal
|
Standard products without measuring speed, if the measured speed L length increased by 30mm
|
|
Accuracy
|
±0.25%、±0.5%
|
|
Year stability
|
0.3%/year
|
|
Insulation resistance
|
≥200MΩ(100VDC)
|
|
Ambient temperature
|
-20 ~ 60 ℃ (can be customized high-temperature -20 ~ 120 ℃)
|
|
Relative humidity
|
0～90%RH
|
|
Overload
|
150%
|
|
Frequency response
|
1ms
|
Applications
1.Detection of electric motors, internal combustion engines and other rotating power equipment, output torque and power;
2.Detection of the load torque and input power of the motor, wind, pump, mixer, reducer, transmission, hoist, propeller, drilling machinery and other equipment;
3.Detection of various machining centers, automatic machine work in the process of torque;
4.Detects the torque and efficiency delivered by various rotating power plant systems;
5.Detection of torque at the same time can detect speed, shaft power;
6.Can be used to manufacture viscometer, electric, pneumatic, hydraulic torque wrench;

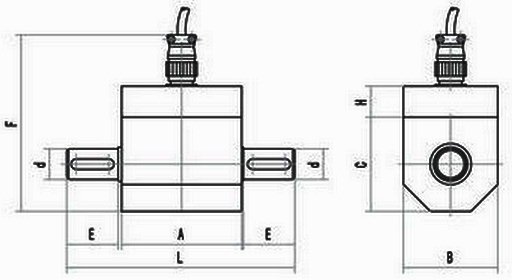

Dimensions(mm):
|
Nm
|
d
|
L
|
E
|
A
|
F
|
|
B
|
H
|
Key(LxWxH)
|
Remark
|
Weight
|
|
5-100
|
18
|
133
|
30
|
70
|
101
|
55
|
55
|
18
|
25x6x6
|
Single key
|
1kg
|
|
100-500
|
25
|
155
|
30
|
91
|
115
|
65
|
65
|
18
|
30x8x7
|
Single key
|
1.5kg
|

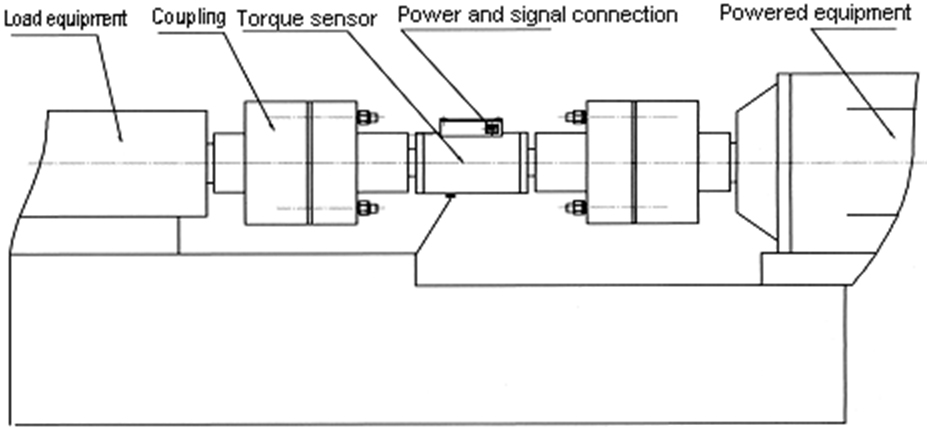

Installation
Installation method:
1. The series sensor without mounting a fixed base, you need to use spring, rope or fixed clip to fix the shell,
in order to avoid shell and signal output wire with the shaft rotation.
2. Other installation, electrical connection methods and precautions according to the standard sensor.
