Model: YGX-ZYBD
Multi-column compression load cell
Made of alloy steel
Capacity: 2000，3000，5000，10000KN
(200, 300, 500, 1000T )

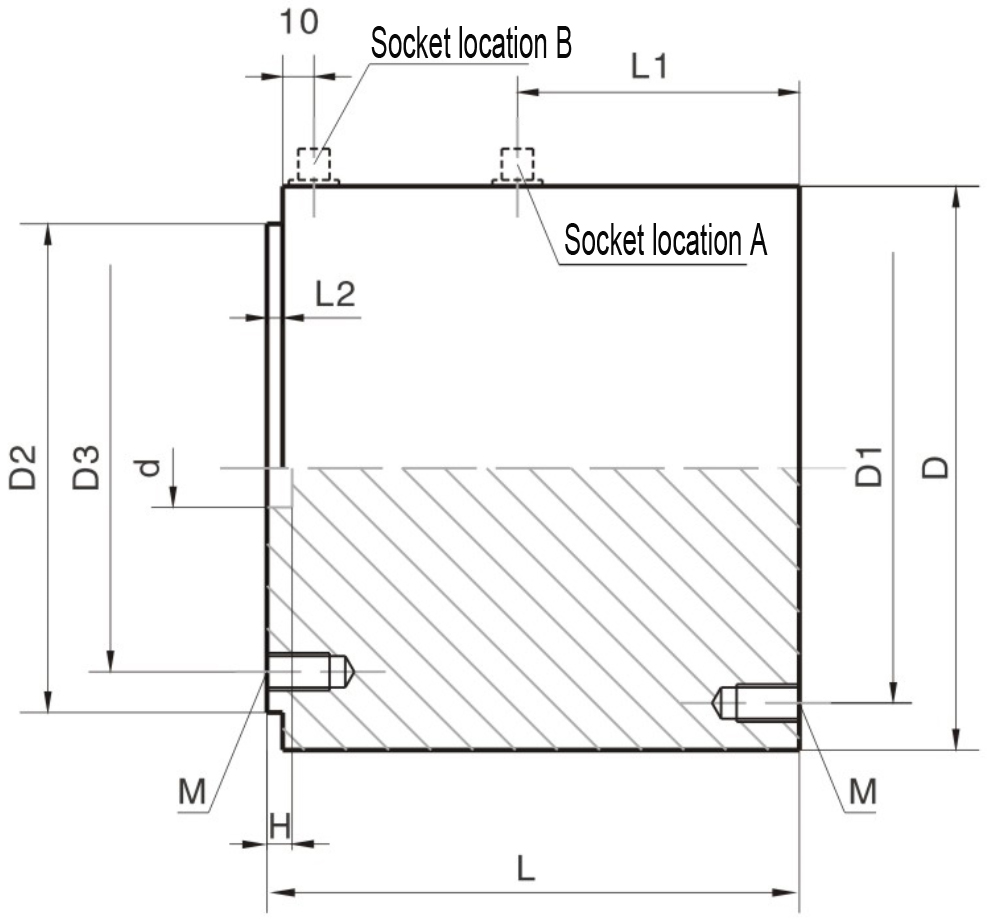

Dimensions(mm):
Note : Socket location can be selected at A or B
Size(mm)
Capacity(KN) |
D |
D1 |
D2 |
D3 |
d |
L |
L1 |
L2 |
H |
M1 |
| 2000 ( 200T ) |
160 |
135 |
138 |
90 |
20 |
133 |
60 |
5 |
8 |
4-M10 |
| 3000 ( 300T ) |
200 |
160 |
178 |
130 |
32 |
160 |
70 |
5 |
8 |
4-M10 |
| 5000 ( 500T ) |
268 |
220 |
230 |
160 |
40 |
210 |
100 |
5 |
10 |
4-M10 |
| 10000 ( 1000T ) |
320 |
/ |
298 |
220 |
25 |
280 |
140 |
15 |
10 |
4-M12 |
Specification
| Accuracy |
0.1%F.S. |
| Rated output |
2.0~2.5 mV / V |
| Non-linearity |
≤0.1 % F.S. |
| Repeatability |
≤0.05% F.S. |
| Hysteresis |
≤0.1 % F.S. |
| Temperature effect on sensitivity |
<0.1 % F.S./10℃ |
| Temperature effect on zero balance |
<0.1% F.S./10℃ |
| Input impedance |
380Ω |
| Output impedance |
350Ω |
| Insulation |
>2000MΩ |
| Recommended excitation |
10 VDC |
| Excitation range |
6~12 VDC |
| Operation temperature range |
- 30 ~ 70oC |
| Safe overload |
120% F.S. |
| Cable |
3 m |
| Protection class |
IP65 |
| Wiring |
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
