Model: YGX-YBF
Compression load cell
Made of alloy steel
Capacity: 1, 2, 3, 5,10, 20, 30, 50, 60, 80, 100, 120KN
( 100, 200, 300, 500kg ; 1, 2, 3, 3, 5, 6, 8, 10, 12T )

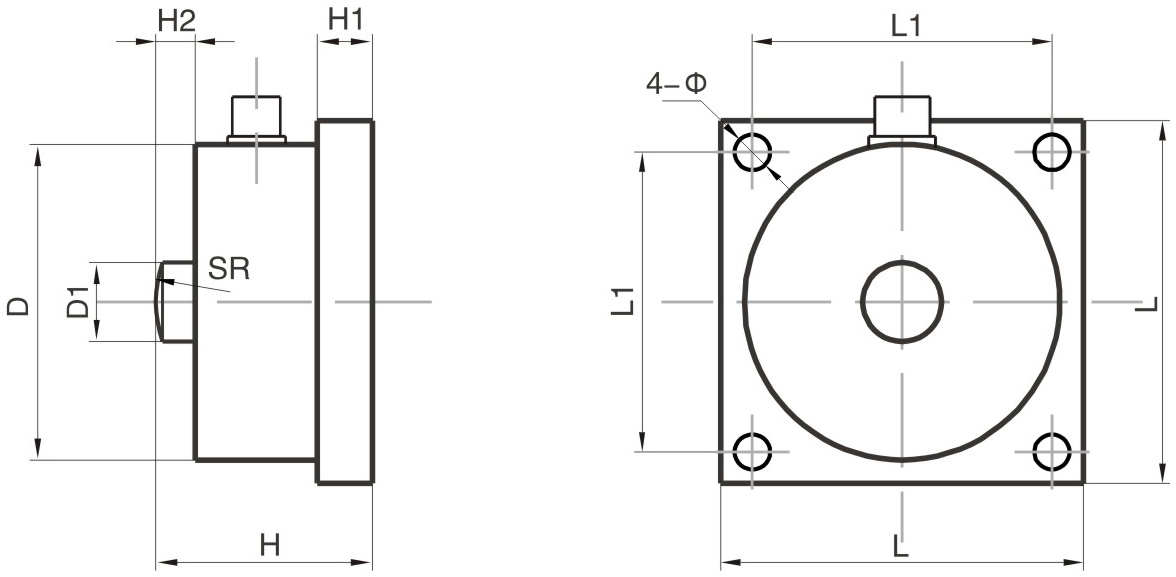

Dimensions(mm):
|
Size(mm)
Capacity(KN)
|
L
|
L1
|
D
|
D1
|
H
|
H1
|
H2
|
SR
|
Ø
|
|
1-30 ( 0.1~3T )
|
82
|
68
|
80
|
22
|
46
|
16
|
5
|
30
|
Ø7
|
|
50-60 ( 5~6T )
|
85
|
70
|
83
|
22
|
46
|
16
|
5
|
65
|
Ø7
|
|
80-120 ( 8~12T )
|
118
|
110
|
110
|
26
|
60
|
20
|
5
|
100
|
Ø9
|
Specifications
| Accuracy |
0.1%F.S. |
| Rated output |
1.5~2.0 mV / V |
| Non-linearity |
≤0.1 % F.S. |
| Repeatability |
≤0.05% F.S. |
| Hysteresis |
≤0.1 % F.S. |
| Temperature effect on sensitivity |
<0.1 % F.S./10℃ |
| Temperature effect on zero balance |
<0.1 % F.S./10℃ |
| Input impedance |
760Ω |
| Output impedance |
700Ω |
| Insulation |
>2000MΩ |
| Recommended excitation |
10 VDC |
| Excitation range |
6~12 VDC |
| Operation temperature range |
- 30 ~ 70oC |
| Safe overload |
120% F.S. |
| Cable |
3 m |
| Protection class |
IP65 |
| Wiring |
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
