Model: YGX952 Multi-axis sensors Tri axis force sensor 3 axis load cell

Features & Applications:
Three dimensional force sensor
Made of stainless steel
Rugged structure，IP65 protection
Small interference among three dimensions
Used as overload protection on robot heads
Automation tools, used for test rigs
Shape and size custom made is available.

Capacity: 50KG（ Multiple and custom designs is available.）

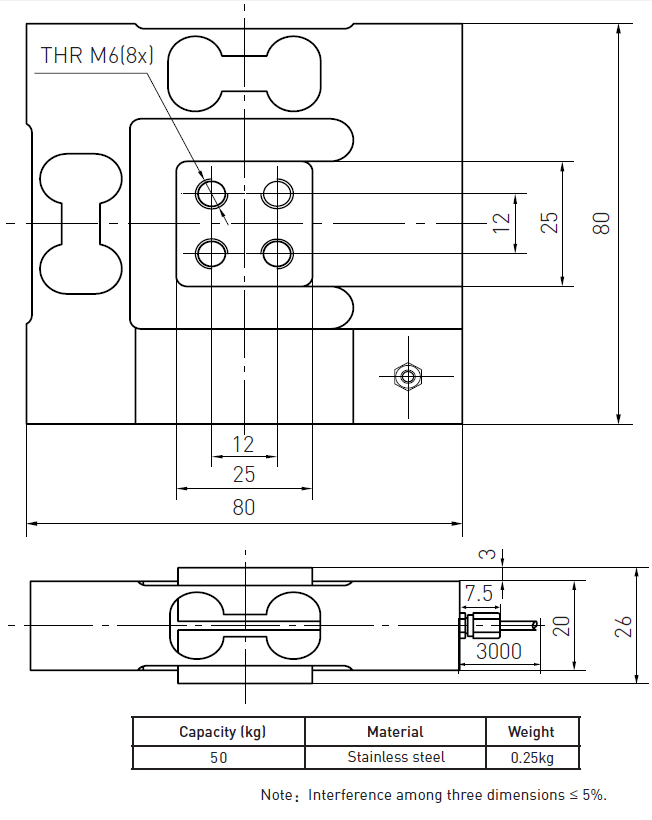

Dimensions(mm):

Load Direction

Specification

Rated output	2.0±10% mV/V
Zero balance	± 2% F.S
Total error	±0.5% F.S.
Non-Linearity	±0.5% F.S.
Temp. effect on output	±0.5% F.S. / 10ºC
Temp. effect on zero	±0.5% F.S. / 10ºC
Output impedance	350± 5Ω
Recommended excitation	5-10 V
Maximum excitation	15 V
Operation temp. range	-10 ~ 60 ºC
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Cable size	Ø 2.8×3000mm
Protection class	IP65
Wiring	Power: Exc + (Red) Exc -(Black) Fx: Sig +(Green) Sig-(White) Fy: Sig +(Blue) Sig-(Yellow) Fz: Sig +(Brown ) Sig-(Grey)
