2 axis force sensors multi axis load / force sensor X-Y force sensor
Model: YGX939
2 axis force sensors multi axis load / force sensor X-Y force sensor
Features & Applications:
Two dimensional force sensor
Made of stainless steel, IP65
Used for robot arm control and as protection for automation equipment.
Shape and size customized
Capacity: 50KG（ Multiple and custom designs is available.）

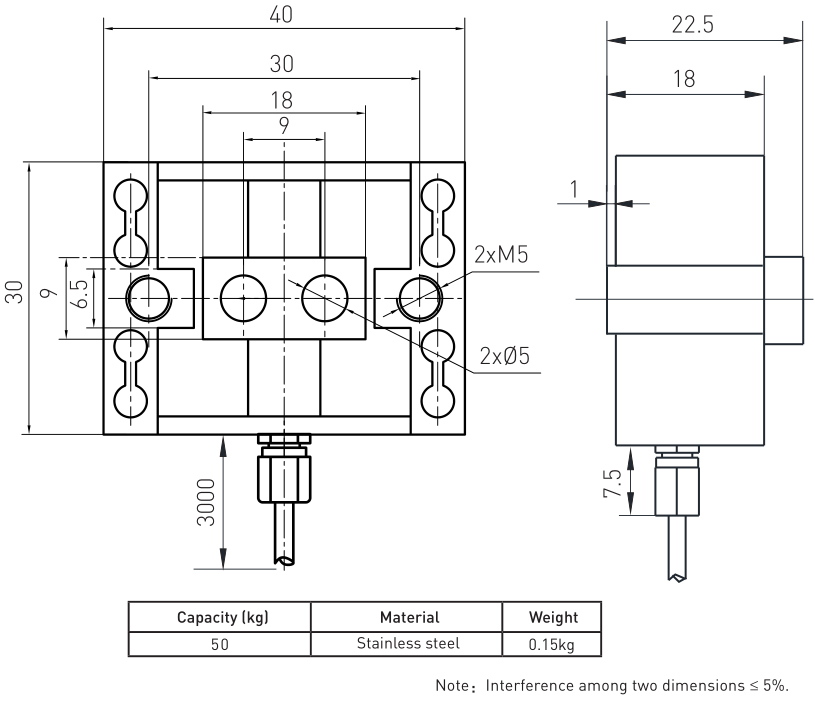

Dimensions(mm):
Load Direction
Specification
|
Rated output
|
1.0±10% mV/V
|
|
Zero balance
|
± 2% F.S
|
|
Total error
|
±0.5% F.S.
|
|
Non-Linearity
|
±0.5% F.S.
|
|
Temp. effect on output
|
±0.2% F.S. / 10ºC
|
|
Temp. effect on zero
|
±0.2% F.S. / 10ºC
|
|
Output impedance
|
352± 3Ω
|
|
Recommended excitation
|
5-10 V
|
|
Maximum excitation
|
15 V
|
|
Compensated temp. range
|
- 10 ~ 40ºC
|
|
Operation temp. range
|
-20 ~ 80 ºC
|
|
Safe overload
|
120% F.S.
|
|
Ultimate overload
|
150% F.S.
|
|
Cable size
|
Ø 2.4×3000mm
|
|
Protection class
|
IP65
|
|
Wiring
|
Power: Exc + (Red) Exc -(Black)
Fx: Sig +(Green) Sig-(White)
Fz: Sig +(Yellow) Sig-(Brown)
|
|
|
|
|
