3 axis load cells multi axis force sensors

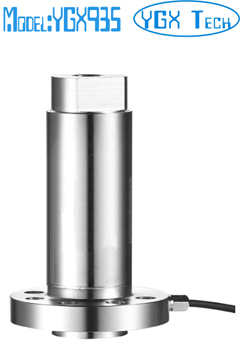

Model: YGX935 3 axis load cells multi axis force sensors
Features & Applications:
Three dimensional force sensor
Made of stainless steel
Rugged structure
IP65 protection
Small interference among three dimensions
Used as overload protection on robot heads
Automation tools, used for test rigs
Capacity: 10, 20, 50, 100KG（ Multiple and custom designs is available.）

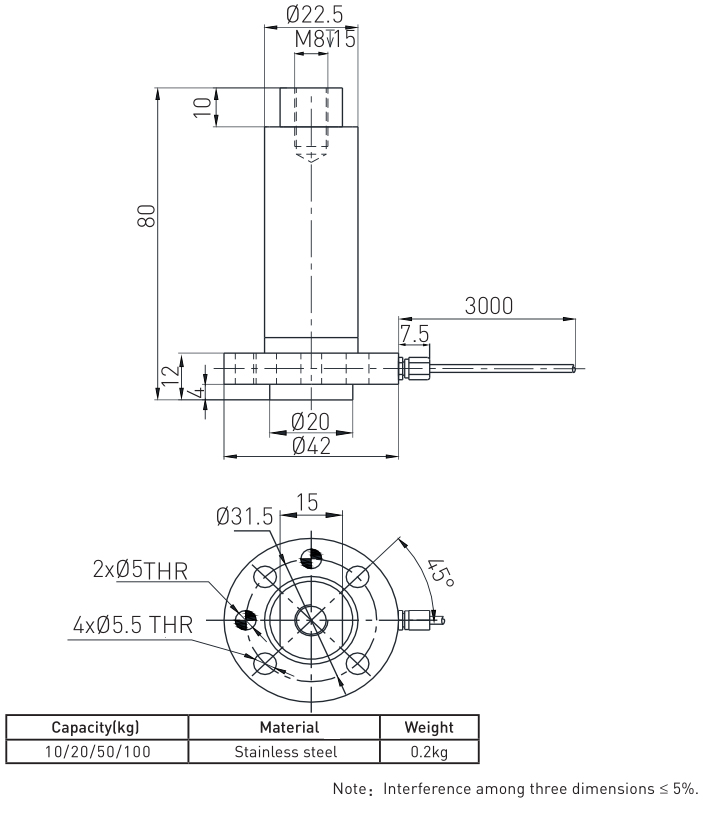

Dimensions(mm):

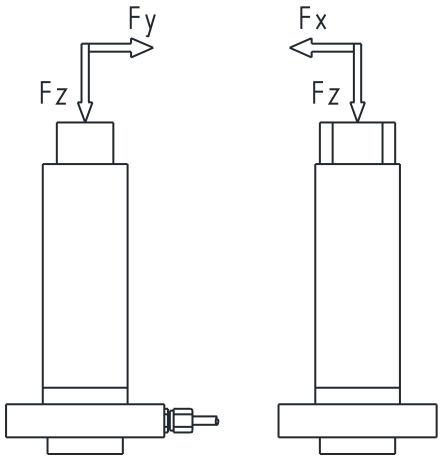

Load Direction
Specification
|
Rated output
|
1.0±10% mV/V
|
|
Zero balance
|
± 2% F.S
|
|
Total error
|
±0.5% F.S.
|
|
Non-Linearity
|
±0.5% F.S.
|
|
Temp. effect on output
|
±0.2% F.S. / 10ºC
|
|
Temp. effect on zero
|
±0.2% F.S. / 10ºC
|
|
Output impedance
|
352± 3Ω
|
|
Recommended excitation
|
5-10 V
|
|
Maximum excitation
|
15 V
|
|
Compensated temp. range
|
- 10 ~ 40ºC
|
|
Operation temp. range
|
-20 ~ 80 ºC
|
|
Safe overload
|
120% F.S.
|
|
Ultimate overload
|
150% F.S.
|
|
Cable size
|
Ø 2×3000mm
|
|
Protection class
|
IP65
|
|
Wiring
|
Power: Exc + (Red) Exc -(Black)
Fx: Sig +(Green) Sig-(White)
Fy: Sig +(Blue) Sig-(Yellow)
Fz: Sig +(Purple) Sig-(Grey)
|
|
|
 |
|
|
