Model: YGX861
Features & Applications:
Easy to install
Alloy steel, laser-welded, IP67
Mainly used for truck scale, ground scale,
tank and other industrial on board weighing systems
Capacity: 10,20,30,40,50T

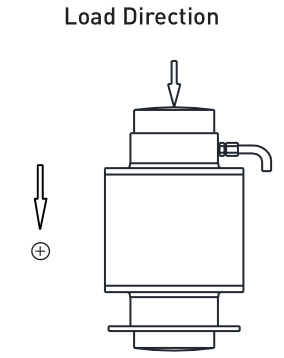

Dimensions(mm):
Specification
|
Rated output
|
2.0±0.2% mV / V
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
± 0.03 % F.S.
|
|
Hysteresis
|
± 0.02 % F.S.
|
|
Repeatability
|
± 0.02 % F.S.
|
|
Creep (30min)
|
± 0.03 % F.S.
|
|
Temp. effect on output
|
0.02 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.02 % F.S. / 10ºC
|
|
Input impedance
|
400 ± 20Ω
|
|
Output impedance
|
352 ± 3Ω
|
|
Recommended excitation
|
5~10V
|
|
Maximum excitation
|
15V
|
|
Compensated temp range
|
- 10 ~ 40 ºC
|
|
Operation temp range
|
- 20 ~ 60ºC
|
|
Safe overload
|
150% F.S.
|
|
Ultimate overload
|
250 % F.S.
|
|
Cable size
|
Ø5×15000 mm
|
|
Protection class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
Note：Cable shield is not connected to element.
