Micro load cell 3kg 5kg 10kg 20kg 30kg
Model: YGX601D-10
Features & Applications:
Miniature load cell with metal foil strain gauge technology, made of stainless steel or aluminum alloy.
An adjustable resistance outside the load cell for zero adjustment.
Custom made is available.
Mainly used for force measurement in different small
space, industrial measurement and control, R&D and other applications.
Capacity: 3,5,10,20,30kg

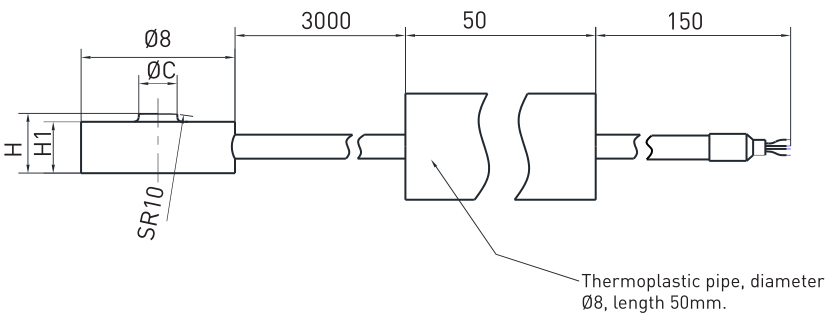

Dimensions(mm):
|
Size (mm)
Cap (kg)
|
C
|
H
|
H1
|
Material
|
Weight
|
|
3/5/10
|
2
|
3.5
|
3
|
Stainless Steel
|
0.01kg
|
|
20/30
|
2.5
|
5.5
|
5
|
Stainless Steel
|
Specification
|
Rated output
|
0.5~1.0 mV / V(3-5kg)
1.0~1.5 mV / V(10-30kg)
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
± 1~3 % F.S.
|
|
Hysteresis
|
± 1~3 % F.S.
|
|
Repeatability
|
± 1~3% F.S.
|
|
Temp. effect on output
|
≤0.5 % F.S. / 10ºC
|
|
Temp. effect on zero
|
≤0.5 % F.S. / 10ºC
|
|
Input impedance
|
350 ± 10Ω
|
|
Output impedance
|
350 ± 3Ω
|
|
Insulation
|
≥2000MΩ/100VDC
|
|
Recommended excitation
|
5V
|
|
Maximum excitation
|
12V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
120% F.S.
|
|
Ultimate overload
|
150 % F.S.
|
|
Cable size
|
Ø2×3000 mm
|
|
Protection class
|
IP64
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
Note：Cable shield is not connected to element.
|
|
 |
|
|
