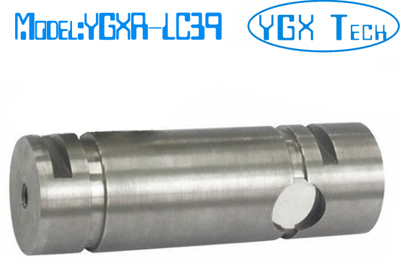

Load pin load cell 2t 3t 5t 7t 10t 15t 20t 30t 40t 50t 100t
Model: YGXR-LC39
Features & Applications:
Stainless steel load pin, rugged structure with metal foil strain gauge technology.
Used as replacement for existing shafts.
Used for ports, terminals and cargo cranes as well as hoist, lifting equipment
and safety testing applications.
Capacity: 2, 3, 5, 7, 10, 15, 20, 30, 40, 50, 100t
Dimensions(mm) :
|
Size(mm)
CAP (t)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
|
2,3,5
|
50
|
180
|
66
|
27
|
-
|
6.5
|
32
|
7
|
-
|
3
|
|
7,10
|
60
|
190
|
96
|
14
|
10
|
9
|
33
|
9
|
9
|
5
|
|
10,15
|
65
|
210
|
116
|
14
|
10
|
9
|
32
|
9
|
8
|
5
|
|
20,30
|
80
|
225
|
109
|
20
|
12
|
11
|
40
|
10
|
8
|
6
|
|
40,50,100
|
120
|
275
|
153
|
25
|
14
|
13
|
51
|
15
|
12
|
6
|
Specification
|
Rated output
|
1.0±10% mV / V
|
|
Zero balance
|
± 1 % F.S.
|
|
Non-linearity
|
0.1-0.5 % F.S.
|
|
Hysteresis
|
0.05 % F.S.
|
|
Repeatability
|
0.05% F.S.
|
|
Creep (30min)
|
0.05 % F.S.
|
|
Temp. effect on output
|
0.05 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.05 % F.S. / 10ºC
|
|
Input impedance
|
385±10Ω (Option1)
780±10Ω (Option2)
|
|
Output impedance
|
350±2Ω (Option1)
700±2Ω (Option2)
|
|
Insulation
|
≥5000MΩ
|
|
Recommended excitation
|
10 V
|
|
Maximum excitation
|
15 V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
300% F.S.
|
|
Ultimate overload
|
500 % F.S.
|
|
Cable size
|
Ø5×3000 mm (Option1)
M12×1-4P (Option2)
|
|
Protection class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
