Digital load cell 10T 20T 30T 40T 50T
Model: YGX-DS425D Digital sensor
Features & Applications:
This sensor can meet the range of 10 tons -100 tons of precision measurement.
Made of stainless steel, hermetically sealed, anti-oil, water, anti-corrosive gas and etc. media.
Column structure, anti-rotation, automatic reset.
Apply to electronic platform scales, vehicle inspection line, hopper scales and other electronic weighing devices.
Capacity: 10 T,20T, 30T, 40T, 50T
Dimensions(mm):
|
Size(mm)
Cap(t)
|
H1
|
H2
|
ØD1
|
ØD2
|
ØD3
|
| 10,15 |
130
|
80
|
44
|
50
|
80
|
| 20,30,40 |
150
|
80
|
44
|
50
|
80
|
| 50,60 |
210
|
120
|
44
|
50
|
80
|
4-core shielded cableØ6x12m
Specification
|
Comprehensive error
|
±0.02 F.S.
|
|
Accuracy
|
C3
|
|
Rated output
|
1,000,000Counts
|
|
Creep(10min)
|
±0.02 % F.S.
|
|
Temp. effect on output
|
±0.02 % F.S. / 10ºC
|
|
Temp. effect on zero
|
±0.02 % F.S. / 10ºC
|
|
Operation temp range
|
- 20 ~ 60ºC
|
|
Excitation
|
9-12 V DC
|
|
The communication baud rate
|
9600 BPS
|
|
Resolution digital module number (code):
|
1.000.000
|
|
Communication interface
|
RS485/RS232
|
|
Date update interval(S)
|
10~80
|
|
Max verification interval
|
5000 n max
|
|
Max transmission range
|
1200m
|
|
Bus addresses
|
32
|
|
Safe overload
|
150% F.S.
|
|
Protection class
|
IP68
|

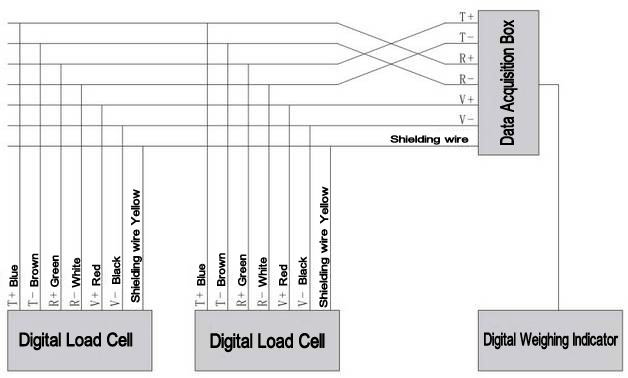

Wiring
|
|
 |
|
|
