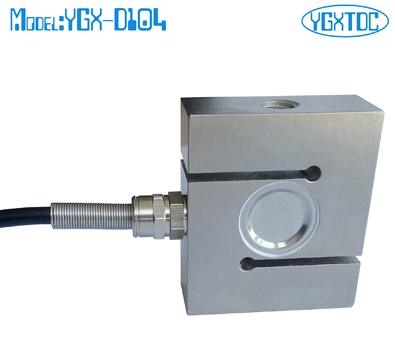

S-type load cell 200KG 500KG 1T 2T 3T 5T
Model:YGX-D104

Features & Applications:

Using S type beam structure, pull, pressure can be used.
High measuring accuracy, good stability, good output symmetry.
Force measuring system is widely used in belt scale, hopper scale, electro-mechanic scale, universal material testing machine, hook scales and various engineering devices.

Capacity: 200~10000KG

Dimensions(mm):



Size(mm)
Capacity
2-M
H
L2
L1
200kg-500kg
M12×1.75
70
25
60
700kg-1t
M16×2
70
25
60
1.5-2t
M16×2
70
25
64
3t-5t
M18×1.5
94
35
86
6-10t
M30×2
137
60
110

Specification:
Rated output 2.0±0.05mV/V
Non-linearity ≤±0.03%F·S
Hysteresis ≤±0.03%F·S
Repeatability ≤±0.03%F·S
Creep(30min) ≤±0.03%F·S
Zero balance ≤±1%F·S
Temperature effect on zero ≤±0.03%F·S/10℃
Temperature effect on output ≤±0.03%F·S/10℃
Operation temperature range -20℃~+80℃
Input impedance 350±20Ω
Output impedance 350±5Ω
Safe overload ≤150%F·S
Insulation ≥5000MΩ(50VDC)
Recommended excitation 10V-15V
Protection Class IP67
Wiring
Red: + Excitation   Black: - Excitation
Green: + Signal    White: - Signal
