Micro s-type load cell 1kg 2kg 3kg 5kg 10kg, 15kg 20kg 30kg 50kg 100kg 200kg

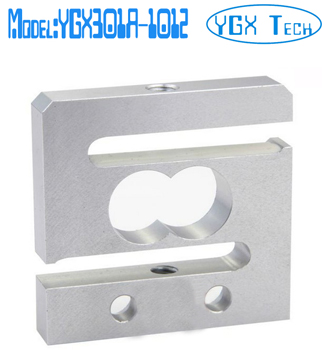

Model: YGX301A-1012
Features & Applications:
Tension and compression load cell, S-type shape, parallel beam or shear beam, made of aluminum alloy or alloy steel.
Mainly used for pull and push dynamometer, industrial weighing and control systems.
Capacity: 1kg, 2kg, 3kg, 5kg, 10kg, 15kg, 20kg,30kg,50kg,100kg,200kg

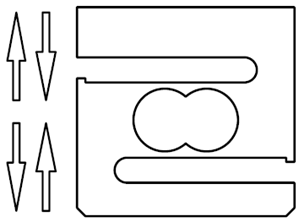

Load Direction

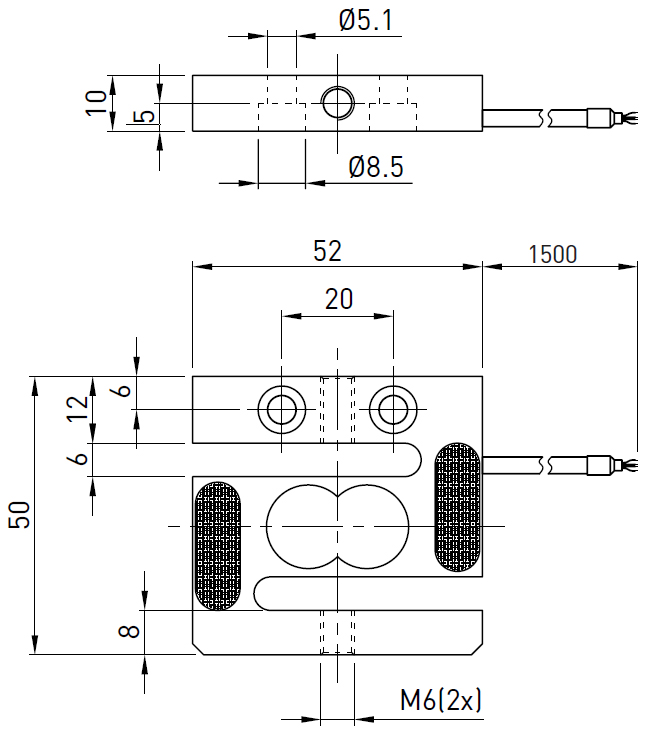

Dimensions(mm):
| Capacity |
Material
|
Weight
|
| 1,2,3,5,10,15,20,30kg |
Aluminum alloy
|
0.1kg
|
| 20,100,200kg |
Alloy steel
|
0.2kg
|
Specification
|
Rated output
|
2.0±10% mV / V
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
0.03 % F.S.
|
|
Hysteresis
|
0.03 % F.S.
|
|
Repeatability
|
0.02% F.S.
|
|
Creep (30min)
|
0.03 % F.S.
|
|
Temp. effect on output
|
0.025 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.025 % F.S. / 10ºC
|
|
Input impedance
|
410±10Ω
385±10Ω(alloy steel)
|
|
Output impedance
|
350±5Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended excitation
|
5 V
|
|
Maximum excitation
|
15 V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
150% F.S.
|
|
Ultimate overload
|
200 % F.S.
|
|
Cable size
|
Ø3×1500 mm
|
|
Protection class
|
IP65
|
|
Cable color code
|
Input: Red(+) Black(-);
Output: Green(+) White(-);
|
|
|
 |
|
|
