Low cost load cell 0.3kg 0.5kg 1kg 1.5kg 2kg 3kg 4kg 10kg

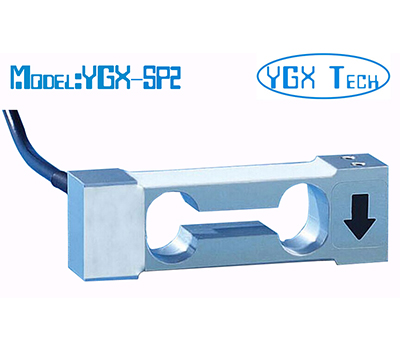

Model: YGX-SP2
Features & Applications:
Single-ended, aluminum load cell.
High Accuracy, good side load tolerance,
Simple Structure, easy to install.
Mainly used for balance and small capacity measurement.
Capacity: 0.3, 0.5, 1, 1.5, 2, 3, 4, 10 kg

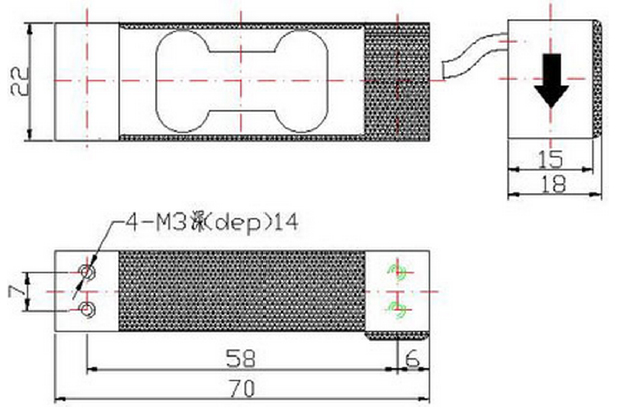

Dimensions（mm）:
Specifications
|
Rated Output
|
1.0(2.0)±10%mv/v
|
|
Zero Balance
|
±2%F.S.
|
|
Non-linearity
|
0.02%F.S.
|
|
Hysteresis
|
0.02%F.S.
|
|
Non-Repeatability
|
0.02%F.S.
|
|
Creep (30min)
|
0.03%F.S.
|
|
Temp. Effect On Output
|
0.025%F.S./10℃
|
|
Temp. Effect On Zero
|
0.025%F.S./10℃
|
|
Input Impedance
|
410±15Ω
|
|
Output Impedance
|
350±3Ω
|
|
Insulation
|
>2000MΩ/50VDC
|
|
Recommended Excitation
|
10V
|
|
Maximum Excitation
|
15V
|
|
Compensated Temp. Range
|
-10~40℃
|
|
Operating Temp. Range
|
-20~60℃
|
|
Safe Overload
|
150%F.S.
|
|
Ultimate Overload
|
300%F.S.
|
|
Cable Size
|
φ3×450mm
|
|
Platform Size
|
200×200(mm)
|
|
Protection Class
|
IP65
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
|
|
