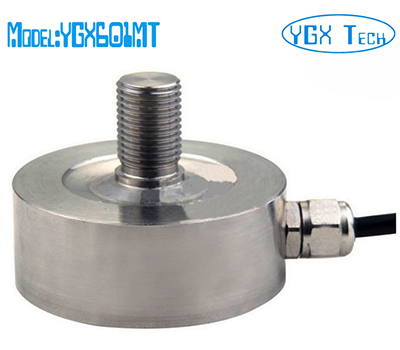

Tension compression load cell 100kg 200kg 300kg 500kg 1t 2t
Model: YGX601MT
Features & Applications:
Miniature load cell with metal foil strain gauge technology, made of stainless steel.
Suitable for force measurement in limited spaces.
Widely used for industrial measurement and control, R&D and other applications.
Capacity: 100kg, 200kg, 300kg, 500kg, 1t, 2t Load Direction
Weight: 0.7kg

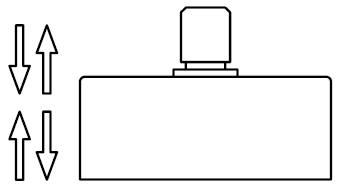

Load Direction
Dimensions(mm):
Specification
|
Rated output
|
1.5±10% mV / V
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
≤0.5 % F.S.
|
|
Hysteresis
|
≤0.5 % F.S.
|
|
Repeatability
|
0.1 % F.S.
|
|
Creep (30min)
|
0.1 % F.S.
|
|
Temp. effect on output
|
0.05 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.05 % F.S. / 10ºC
|
|
Input impedance
|
385±10Ω
|
|
Output impedance
|
350±5Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended excitation
|
10 V
|
|
Maximum excitation
|
15 V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
150% F.S.
|
|
Ultimate overload
|
200 % F.S.
|
|
Cable size
|
Ø5×1500 mm
|
|
Protection class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
