Miniature load cell 5kg 10kg 20kg 30kg 50kg 100kg
Model: YGX601D-15
Features & Applications:
Miniature load cell with metal foil strain gauge technology, made of stainless steel or aluminum alloy.
Suitable for force measurement in limited spaces.
Widely used for industrial measurement and control, R&D and other applications.
Capacity: 5, 10, 20, 30, 50, 100kg
Load Direction

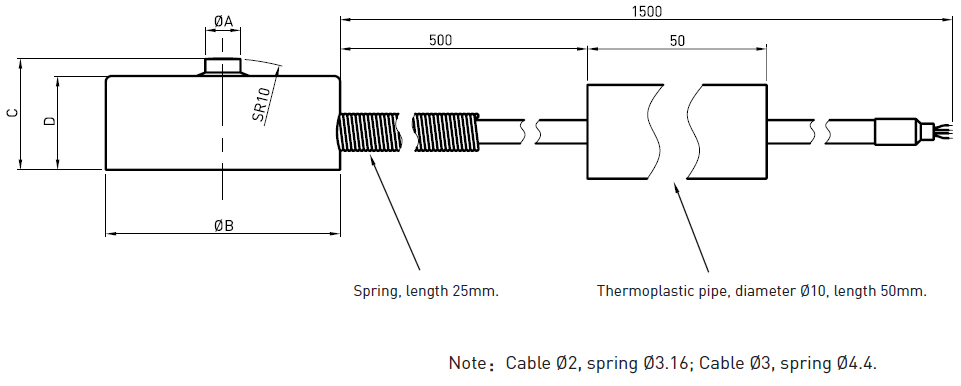

Dimensions(mm):
|
SIZE(mm)
CAP (kg)
|
A
|
B
|
C
|
D
|
Cable
|
Material
|
Weight
|
|
5
|
1
|
12
|
4
|
3.5
|
Ø2
|
Aluminum alloy(optional)
Stainless steel
|
0.1kg
|
|
10,20
|
1.5
|
15
|
5
|
4.5
|
Stainless steel
|
0.2kg
|
|
30,50
|
2
|
20
|
9.5
|
8
|
Ø3
|
Stainless steel
|
|
100
|
3
|
20
|
9.5
|
8
|
Stainless steel
|
Note：The load cell of 5~20kg is without spring.
Specification
|
Rated output
|
1.5±10% mV / V
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
≤1 % F.S.
|
|
Hysteresis
|
0.5 % F.S.
|
|
Repeatability
|
0.5% F.S.
|
|
Creep (30min)
|
0.25 % F.S.
|
|
Temp. effect on output
|
0.05 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.05 % F.S. / 10ºC
|
|
Input impedance
|
350±10Ω
|
|
Output impedance
|
350±5Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended excitation
|
5V
|
|
Maximum excitation
|
10 V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
120% F.S.
|
|
Ultimate overload
|
150 % F.S.
|
|
Cable size
|
1500 mm
|
|
Protection class
|
IP66
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
