Mini weight sensor 50N 1KN 50KN 120KN
Model: YGX601DL
Features & Applications:
Miniature load cell with diaphragm type structure, made of stainless steel or aluminum alloy.
Mainly used for force measurement in different small spaces.
Widely used for industrial measurement and control, R&D and other applications.
Capacity: 50N – 120 KN
Load Direction

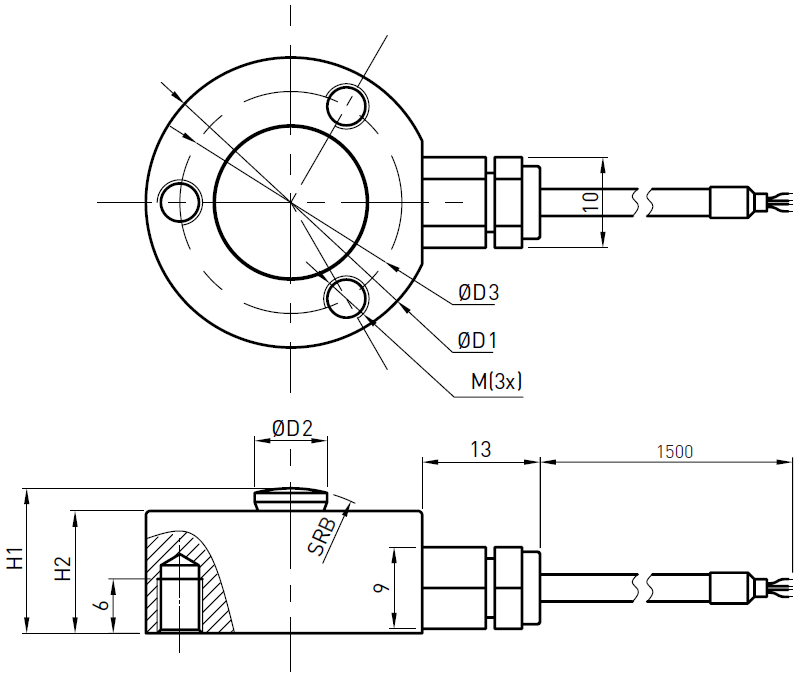

Dimensions(mm)
|
SIZE (mm)
CAP (N)
|
D1
|
D2
|
D3
|
H1
|
H2
|
B
|
M
|
Material
|
Weight
|
|
50,100,200,300,500
|
25
|
5
|
19
|
16
|
14.5
|
10
|
M4
|
Stainless steel
|
0.1kg
|
|
1K,2K,3K,5K,10K
|
32
|
8
|
24.5
|
16
|
14
|
16
|
M5
|
0.1kg
|
|
20K,30K,50K
|
38
|
11
|
30
|
16
|
14
|
20
|
M6
|
0.2kg
|
|
60K,100K,120K
|
51
|
15
|
41
|
25
|
22
|
30
|
M8
|
0.4kg
|
Specification
|
Rated output
|
1.5±10% mV / V
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
0.5 % F.S.
|
|
Hysteresis
|
0.5 % F.S.
|
|
Repeatability
|
0.5% F.S.
|
|
Creep (30min)
|
0.1 % F.S.
|
|
Temp. effect on output
|
0.05 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.05 % F.S. / 10ºC
|
|
Input impedance
|
350±10Ω
|
|
Output impedance
|
350±5Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended excitation
|
5-10 V
|
|
Maximum excitation
|
15 V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
120% F.S.
|
|
Ultimate overload
|
200 % F.S.
|
|
Cable size
|
Ø3×1500 mm
|
|
Protection class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
