Micro weight sensor 5kg 10kg 20kg 50kg 100kg 200kg 500kg 1000kg 1500kg 2000kg
Model: YGX601D-20
Features & Applications:
Miniature load cell with metal foil strain gauge technology, made of stainless steel or aluminum alloy.
Suitable for force measurement in limited spaces.
Widely used for industrial measurement and control, R&D and other applications.
Capacity: 5,10,20,50,100,200,500,1000,1500,2000kg（stainless steel）
Weight:0.1 kg
Load Direction

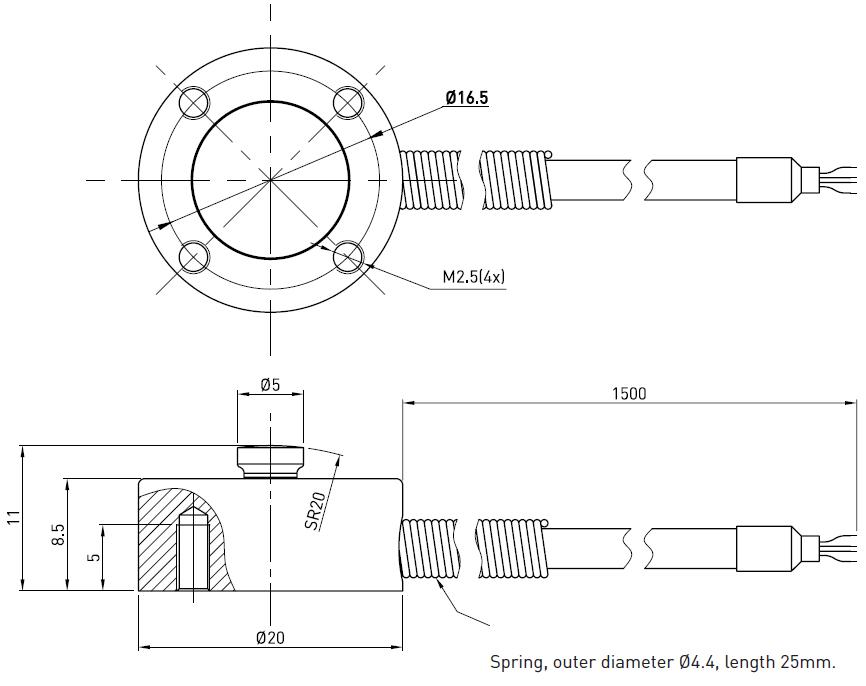

Dimensions(mm):
Note：The outline can be pressing nut, Ø2×1500 mm, IP67.
Specification
|
Rated output
|
1.5±10% mV / V
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
≤1 % F.S.
|
|
Hysteresis
|
0.25 % F.S.
|
|
Repeatability
|
0.25% F.S.
|
|
Creep (30min)
|
0.25 % F.S.
|
|
Temp. effect on output
|
0.05 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.05 % F.S. / 10ºC
|
|
Input impedance
|
350±10Ω
|
|
Output impedance
|
350±5Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended excitation
|
5 V
|
|
Maximum excitation
|
10 V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
150% F.S.
|
|
Ultimate overload
|
200 % F.S.
|
|
Cable size
|
Ø3×1500 mm
Ø2×1500 mm(optional, pressing nut)
|
|
Protection class
|
IP66
IP67(optional, pressing nut)
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
