Micro load cell 3kg 5kg 10kg 20kg 30kg 50kg 100kg
Model: YGX601D-10
Features & Applications:
Miniature load cell with metal foil strain gauge technology, made of stainless steel or aluminum alloy.
Mainly used for force measurement in different small space, industrial measurement and control, R&D and other applications.
Capacity: 3,5,10,20,30,50,100kg

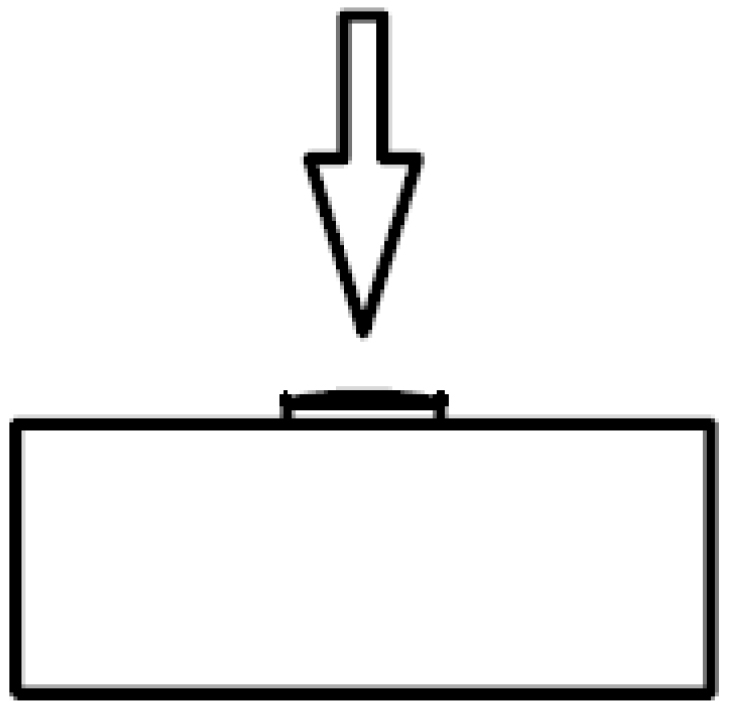

Load Direction

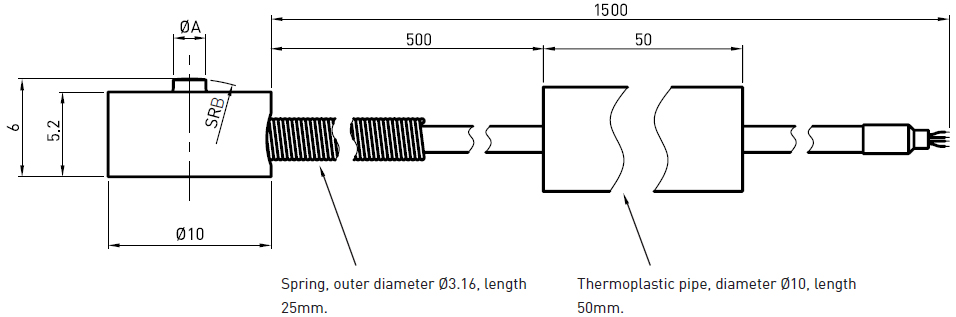

Dimensions(mm):
|
SIZE (mm)
CAP (kg)
|
ØA
|
B
|
Material
|
Weight
|
|
3
|
1
|
8
|
Aluminum
|
0.1kg
|
|
5/10
|
1.5
|
5
|
Stainless Steel
|
|
20/30
|
2
|
8
|
Stainless Steel
|
|
50/100
|
2.5
|
10
|
Stainless Steel
|
Specification
|
Rated output
|
1.0±10% mV / V
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
≤1 % F.S.
|
|
Hysteresis
|
0.5 % F.S.
|
|
Repeatability
|
0.5% F.S.
|
|
Creep (30min)
|
0.5 % F.S.
|
|
Temp. effect on output
|
0.05 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.05 % F.S. / 10ºC
|
|
Input impedance
|
350 ± 10Ω
|
|
Output impedance
|
350 ± 5Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended excitation
|
5V
|
|
Maximum excitation
|
10V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
120% F.S.
|
|
Ultimate overload
|
150 % F.S.
|
|
Cable size
|
Ø2×1500 mm
|
|
Protection class
|
IP66
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
