Load cell 1 ton 100 ton
Model: YGX-DL102
Features & Applications：
The sensor uses wheel elastic pulling type structure, has the characteristics of low profile, the eccentric load resistance, high precision, good strength, convenient installation, push-pull output symmetry.
Industrial automation measurement and control system is widely used in industrial systems force measuring and weighing, railway scale, hopper scale, weighing, measuring force.
Capacity: 200kg~500t

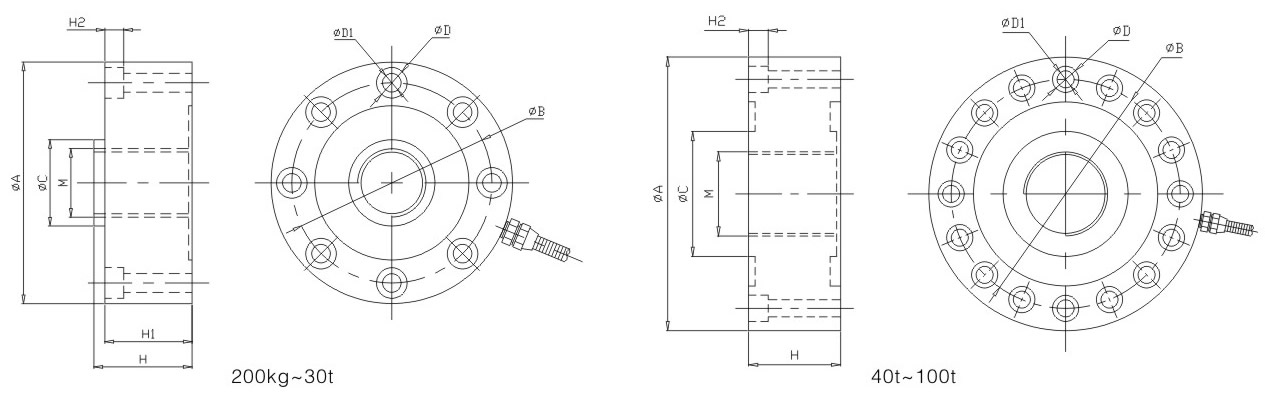

Dimensions(mm):
|
Size(mm)
Capacity
|
ΦA
|
ΦB
|
ΦC
|
M
|
H
|
H1
|
H2
|
ΦD
|
ΦC
|
|
200-800kg
|
74
|
63
|
24
|
M16×1.5
|
34
|
30
|
7.2
|
8-Φ9
|
8-Φ6
|
|
2-5t
|
105
|
89
|
32
|
M16×1.5
|
37
|
34
|
7.2
|
8-Φ11
|
8-Φ7
|
|
10-20t
|
120.6
|
101.8
|
39
|
M32×1.5
|
53.5
|
41
|
10.5
|
8-Φ14
|
8-Φ9
|
|
30t
|
141
|
116.8
|
50.4
|
M40×1.5
|
57.2
|
50.8
|
11
|
8-Φ18
|
8-Φ11
|
|
Size(mm)
Capacity
|
ΦA
|
ΦB
|
ΦC
|
M
|
H
|
H2
|
ΦD
|
ΦD1
|
|
40-60t
|
208
|
174
|
95
|
M64×3
|
70
|
15
|
16-Φ20
|
16-Φ13
|
|
80-100t
|
280
|
230
|
120
|
M76×3
|
90
|
20
|
16-Φ30
|
16-Φ17
|
Specification:
|
Rated output
|
2.0±0.05mV/V
|
|
Non-linearity
|
≤±0.03%F·S
|
|
Hysteresis
|
≤±0.03%F·S
|
|
Repeatability
|
≤±0.03%F·S
|
|
Creep(30min)
|
≤±0.03%F·S
|
|
Zero balance
|
≤±1%F·S
|
|
Temperature effect on zero
|
≤±0.03%F·S/10℃
|
|
Temperature effect on output
|
≤±0.03%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
750±20Ω
|
|
Output impedance
|
700±5Ω
|
|
Safe overload
|
≤150%F·S
|
|
Insulation
|
≥5000MΩ(50VDC)
|
|
Recommended excitation
|
10V-15V
|
|
Protection Class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
