Round load cell 0.2t 1t 10t 20t 30t
Model:YGX-DL101
Features & Applications：
The sensor adopts the wheel type elastic body structure, the shear stress theory.
It has the characteristics of low profile, the eccentric load resistance, high precision,good strength.
Applicable to a variety of loading test.
Widely used in various electronic scale, batching bin, powder, cement mixer
and industrial automation measurement and control system
Capacity: 0.2~30T

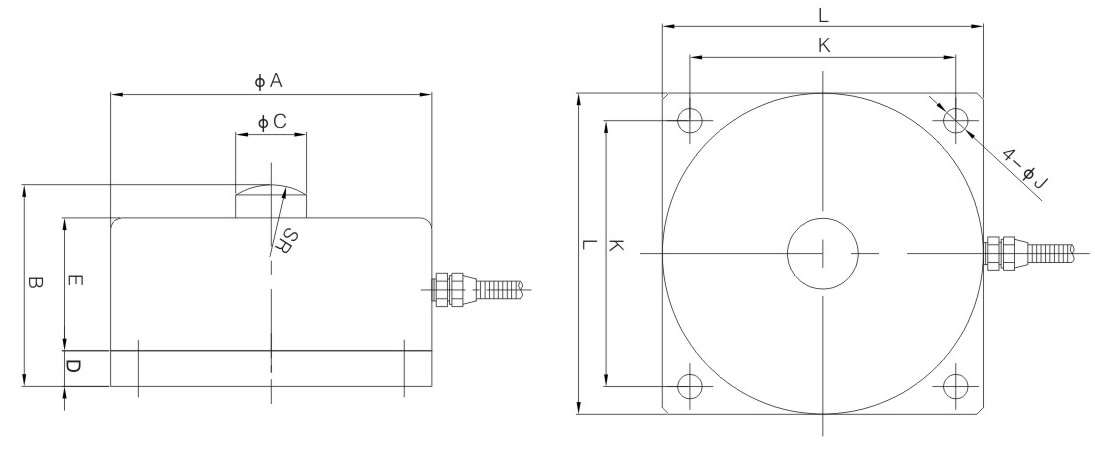

Dimensions(mm):
|
Size(mm)
Capacity
|
ФA
|
B
|
ФC
|
D
|
E
|
K
|
L
|
SR
|
4-ФJ
|
|
0.2-0.7t
|
72
|
41
|
16
|
8
|
25
|
62
|
72
|
8
|
4.6
|
|
1-8t
|
88
|
53
|
20
|
10
|
34
|
75
|
88
|
12
|
5.6
|
|
10-15t
|
114
|
70
|
25
|
13
|
46
|
95
|
114
|
25
|
6.5
|
|
20-50t
|
145
|
91
|
32
|
16
|
60
|
120
|
145
|
30
|
11
|
Specification:
|
Rated output
|
2.0±0.05mV/V
|
|
Non-linearity
|
≤±0.03%F·S
|
|
Hysteresis
|
≤±0.03%F·S
|
|
Repeatability
|
≤±0.03%F·S
|
|
Creep(30min)
|
≤±0.03%F·S
|
|
Zero balance
|
≤±1%F·S
|
|
Temperature effect on zero
|
≤±0.03%F·S/10℃
|
|
Temperature effect on output
|
≤±0.03%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
750±20Ω
|
|
Output impedance
|
700±5Ω
|
|
Safe overload
|
≤150%F·S
|
|
Insulation
|
≥5000MΩ(50VDC)
|
|
Recommended excitation
|
10V-15V
|
|
Protection Class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
