Spoke type load cell 0.25t 1t 5t 10t 20t 50t 80t 100t
Model: YGX601B
Features & Applications:
Bellows type load cell made of stainless steel.
Small deflection, low profile .
Used for electronic truck scale, ground scale, tank and other weighing systems.
Capacity: 0.25 ~ 100t
Load Direction

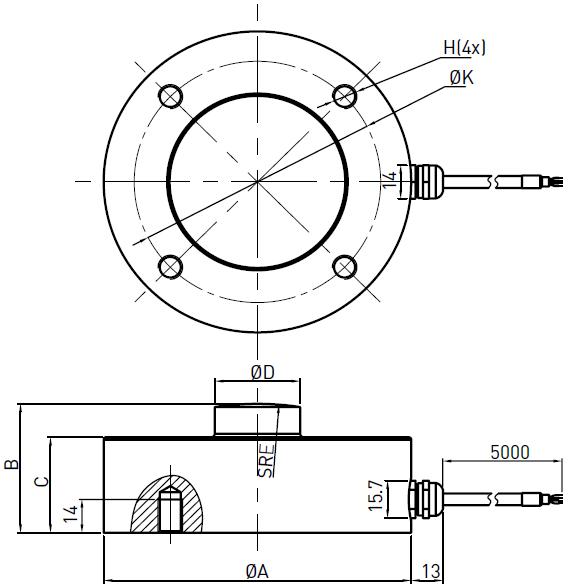

Dimensions(mm):
|
SIZE(mm)
CAP (kg)
|
A
|
B
|
C
|
D
|
E
|
K
|
H
|
Weight
|
|
250,500,1000,10000
2000,3000,5000,10000
|
82
|
44
|
32
|
22
|
50
|
68
|
M8
|
1.2kg
|
|
15000,20000
|
100
|
48
|
36
|
28
|
100
|
80
|
M8
|
1.6kg
|
|
30000
|
126
|
54
|
40
|
35
|
100
|
101
|
M10
|
3.2kg
|
|
50000-100000
|
165
|
80
|
62
|
60
|
150
|
144
|
M10
|
8.6kg
|
Specification
|
Rated output
|
1.5±1%mV/V
|
|
Zero balance
|
± 2 % F.S.
|
|
Non-linearity
|
0.05 % F.S.
|
|
Hysteresis
|
0.05 % F.S.
|
|
Repeatability
|
0.05% F.S.
|
|
Creep (30min)
|
0.05 % F.S.
|
|
Temp. effect on output
|
0.03 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.03 % F.S. / 10ºC
|
|
Input impedance
|
385 ± 10Ω
|
|
Output impedance
|
350 ± 5Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended excitation
|
10V
|
|
Maximum excitation
|
15V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
150% F.S.
|
|
Ultimate overload
|
200 % F.S.
|
|
Cable size
|
Ø5×5000 mm
|
|
Protection class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
