Truck scale load cell 5t 10t 20t 45t 90t
Model: YGX701B
Features & Applications:
Easy to install; Alloy steel, laser-welded, IP68
Mainly used for truck scale, ground scale, tank and other industrial weighing systems
Capacity: 5 ~20,45, 90 t

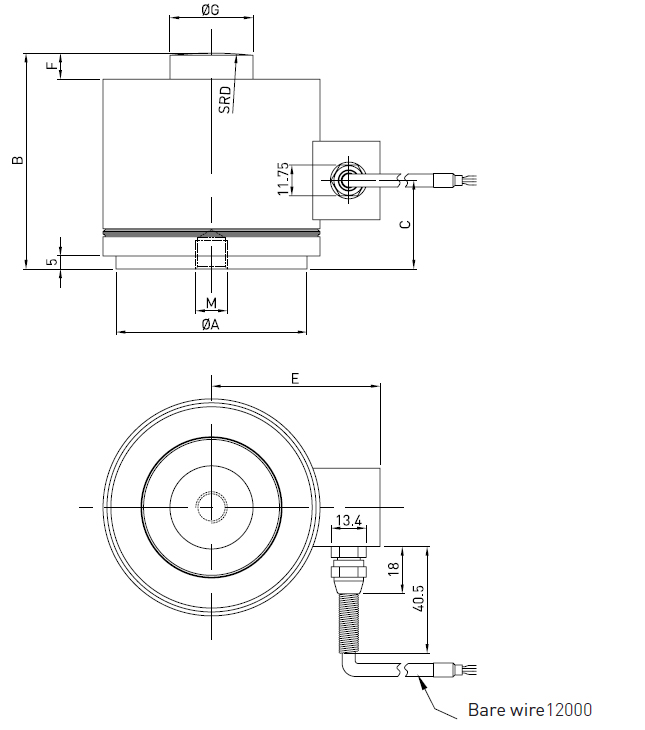

Dimensions(mm):
|
SIZE(mm)
CAP (t)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
M
|
Material
|
Weight
|
|
mm
|
DP
|
|
5-20
|
73
|
82.6
|
32.5
|
152
|
64
|
10
|
31.8
|
M12X1.75
|
10
|
Alloy steel
|
4.5kg
|
|
45
|
105
|
127
|
54.6
|
152
|
86
|
13
|
59
|
M18X1.75
|
14
|
6.4kg
|
|
90
|
152
|
152
|
92
|
432
|
108
|
26
|
80
|
M20X1.5
|
19
|
7.5kg
|
Specification
|
Rated output
|
2.0±1% mV / V
|
|
Zero balance
|
± 1 % F.S.
|
|
Non-linearity
|
≤0.1 % F.S.
|
|
Hysteresis
|
≤0.1 % F.S.
|
|
Repeatability
|
0.02% F.S.
|
|
Creep (30min)
|
0.05 % F.S.
|
|
Temp. effect on output
|
0.05 % F.S. / 10ºC
|
|
Temp. effect on zero
|
0.02 % F.S. / 10ºC
|
|
Input impedance
|
780 ± 10Ω
|
|
Output impedance
|
700 ± 5Ω
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
Recommended excitation
|
10V
|
|
Maximum excitation
|
15V
|
|
Compensated temp range
|
- 10 ~ 60 ºC
|
|
Operation temp range
|
- 20 ~ 80ºC
|
|
Safe overload
|
150% F.S.
|
|
Ultimate overload
|
200 % F.S.
|
|
Cable size
|
Ø5×12000 mm
|
|
Protection class
|
IP68
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
