Cantilever beam load cell 10kg 50kg 100kg 200kg 500kg 1000kg
Model:YGX-BW106
Features & Applications:
Bellows type weighing sensor using a parallel beam structure, metal bellows welding sealing, filled with inert gases. Overload resistance, fatigue resistance, strong capacity of resisting eccentric load.
Widely used in electronic belt scales, hopper scales, platform scales and other
special scales, various materials testing and other force measuring device.
Capacity ：10~1000KG

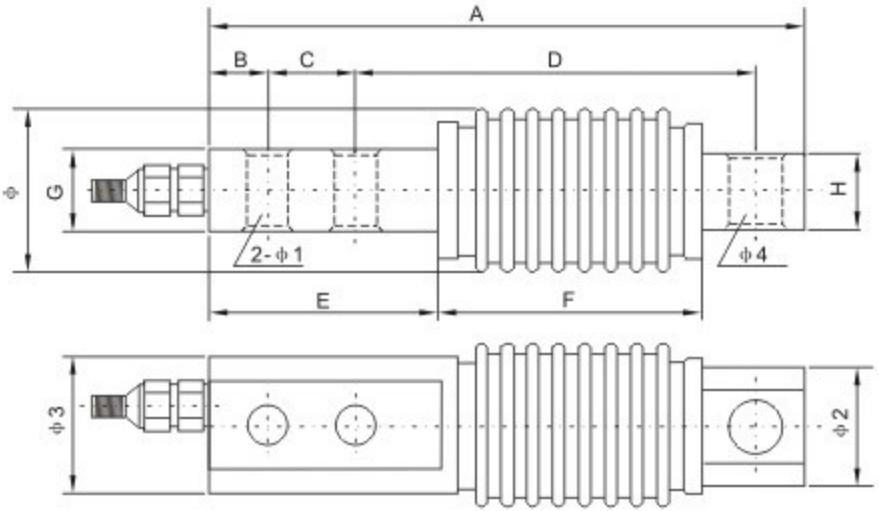

Dimensions(mm):
|
Size(mm)
Capacity(kg)
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
φ
|
φ1
|
φ2
|
φ3
|
φ4
|
|
10-200
|
123
|
13
|
18
|
82
|
45
|
59
|
22
|
20
|
45
|
8.5
|
27
|
32
|
11
|
|
300-1000
|
210
|
15
|
40
|
133
|
93
|
64
|
34
|
25
|
60
|
13
|
35
|
50
|
14
|
Specification:
|
Rated output
|
2.0/3.0±0.05
|
|
Non-linearity
|
≤±0.03%F·S
|
|
Hysteresis
|
≤±0.03%F·S
|
|
Repeatability
|
≤±0.02%F·S
|
|
Creep(30min)
|
≤±0.03%F·S
|
|
Zero balance
|
≤±1%F·S
|
|
Temperature effect on zero
|
≤±0.02%F·S/10℃
|
|
Temperature effect on output
|
≤±0.02%F·S/10℃
|
|
Operation temperature range
|
-40℃～+80℃
|
|
Input impedance
|
352±10Ω
|
|
Output impedance
|
40±10Ω
|
|
Safe overload
|
≤150%F·S
|
|
Insulation
|
≥5000MΩ(50VDC)
|
|
Recommended excitation
|
10V-12V
|
|
Protection Class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
 |
|
|
