Rotary shaft torque sensor 0.5Nm 1Nm 2Nm 5Nm 10Nm 20Nm 30Nm 50Nm 100Nm
Model: YGX-TQ1000A Dynamic torque sensor
Features and Applications
One product of resistance strain gauge as the sensitive element and integrated circuit, through the electric brush to realize power supply and signal output.
Middle and low capacity torque measurement , it can measure two positive and negative direction torque values.
Mounting: Keyed shaft both ends., convenient installation and use.
Type A, the maximum speed is not more than 500 rpm; maintenance period: about 15000000 revolutions.
Type B, the maximum speed is not more than 300 rpm; maintenance period: about 10000000 revolutions.
Capacity: 0～0.5,1,2,5,10,20,30,50,100Nm

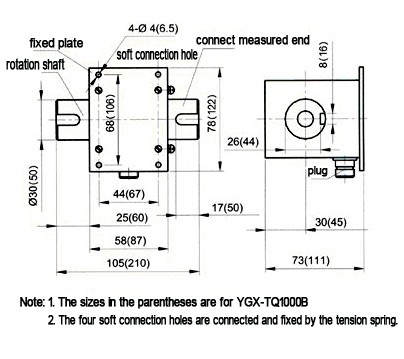

Dimension(mm):
Specifications
|
Rated Output
|
1.0～2.0 mV/V
|
|
Non-Linearity
|
±0.1%F.S
|
|
Hysteresis
|
±0.5%F.S
|
|
Repeatability
|
±0.3%F.S
|
|
Operation TemperatureRange
|
-35～+80℃
|
|
Compensated TemperatureRange
|
20～+60℃
|
|
Temperature Effect On Zero
|
±0.1%F.S/10 ℃
|
|
Recommended Excitation
|
12 VDC
|
|
Response frequency
|
100μS
|
|
Insulation
|
2000 MΩ/100VDC
|
|
Input Impedance
|
700±10/350±10Ω
|
|
Output impedance
|
700±5/350±5Ω
|
|
Zero Output
|
0～±1%F.S
|
|
Safe Overload
|
120%F.S
|
|
Material
|
Alloy steel
|
|
Cable Color Code
|
Input: Red(+) Green(-); Output: Yellow(+) White(-);
|
|
|
 |
|
|
