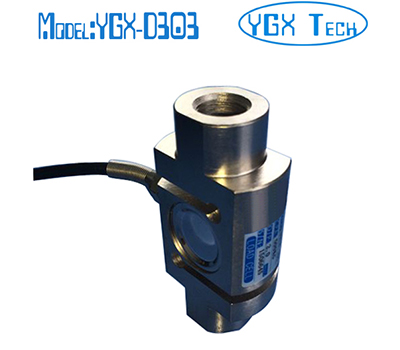

S type load cell 0.2T 0.7T 1T 2T 5T 6T 8T 10T
Model: YGX-D303
Features & Applications:
The sensor adopts column S structure, good strength, good stability and so on.
Tension measurement is widely used in overhead traveling crane scale, hopper
scale, industrial automation and process control.
Capacity: 0.2~10T
Dimensions(mm):
|
Size(mm)
Capacity
|
ΦA
|
B
|
ΦC
|
D
|
E
|
M
|
|
0.2-0.7t
|
44
|
88
|
28
|
56
|
26
|
M16×1.5
|
|
1-5t
|
58
|
112
|
38
|
68
|
44
|
M24×1.5
|
|
10t
|
84
|
160
|
60
|
103
|
58
|
M36×4
|
Specification:
|
Rated output
|
2.0±0.05mV/V
|
|
Non-linearity
|
≤±0.05%F·S
|
|
Hysteresis
|
≤±0.05%F·S
|
|
Repeatability
|
≤±0.05%F·S
|
|
Creep(30min)
|
≤±0.05%F·S
|
|
Zero balance
|
≤±1%F·S
|
|
Temperature effect on zero
|
≤±0.05%F·S/10℃
|
|
Temperature effect on output
|
≤±0.05%F·S/10℃
|
|
Operation temperature range
|
-20℃～+80℃
|
|
Input impedance
|
350±20Ω
|
|
Output impedance
|
350±5Ω
|
|
Safe overload
|
≤150%F·S
|
|
Insulation
|
≥5000MΩ(50VDC)
|
|
Recommended excitation
|
10V-15V
|
|
Protection Class
|
IP67
|
|
Wiring
|
Red: + Excitation Black: - Excitation
Green: + Signal White: - Signal
|
|
|
|
|
